100W CO2 Galvo Laser Marking Machine With RF Laser Tube (RF-CO2-100W)

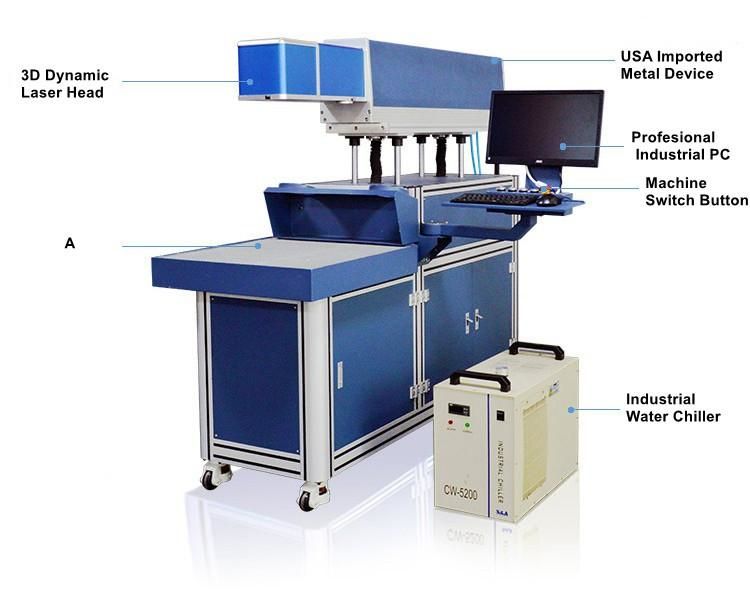

Machine Introduction
3D dynamic auto focusing laser marking machine, adopting USA imported metal laser device, with bigger power, high frequency,longer lifetime . 3d marking machine adopting high technology dynamic scanning head and control card,has the unique advantage of algorithm optimization,high marking cutting speed,powerful function.
3d laser marking specially designed for the demand of small laser spot,bigger working size and high flexible laser scanning. widely used in leather pattern carving, leather hollowing,invitation card marking ,wood craft laser marking, jeans cloth pattern marking and other other nonmetal laser marking process.
3D Laser Marking System Main Features
1.Compared with the traditional rear focal point marking machine, CO2 dynamic marking machine no need to change plane lens to get different marking area and with fine laser beam.
2.Whole sealing and non-maintenance laser optical system, no need to adjust, install and use.
3.Original imported RF laser, high power, good quality laser beam, stable power and it can long work over 20 thousand hour.
4.High precision, high speed marking/cutting function, work efficiency increased by 20% than any others in the same kind.
5.Professional constant temperature cycling industrial cooling water system makes it work more stable and power consumption lower.
6.Strict multi-protected controlling design, suit for extensive environmental temperature, make sure the laser marking system can work reliably continuous 24 hours.
7.It's compatible with AutoCAD, CorelDraw, Photoshop and other software file format, such as DXF, PLT,BMP etc. It also can accept TXT at the size of XY coordinate point and dot.
8.Specialized in cutting and engraving in the line of LGP acrylic laser marking and shoes,leather etc.
materials
Technical Parameters
| Model | RF-CO2-100W/150W/200W |
| Laser Wavelength | 10.64μm |
| Laser Power | 100W(150W/200W Option) |
| Marking Speed | ≤8000mm/s |
| Working Area | 300x300mm,400x400mm,500x500mm, 600x600mm, 800x800mm |
| Cooling Mode | Water Cooling |
| Response Time | 0.5ms |
| Frequency of Pulse | 20-100KHZ |
| Marking Depth | ≤0.4mm |
| Marking Lines | 1-10 lines |
| Minimum Line Width | 0.01mm |
| Minimum Character | 1mm |
| Repeatability Accuracy | ±0.002mm |
| Resolution Ratia | 0.1mm |
| Marking Contect | Text, pattern, date, bar code etc |
| Opetation System | Microsoft Windows |
| Graphic Format Supported | PLT, BMP, JPG, GIF, TGA, AI, DXF, PNG, TIF, DST etc |
| Control Software | EZCAD |
| Unit Power | ≤1.2KW |
| Operation Temperature | 5°c-40°c |
| Relative Moisture | ≤90% |
| Supply Voltage | AC220V/50HZ; AC 110v/50HZ |
| Software Features | Special laser software,easy to operate,easy to learn,software integration,data optimization function,greatly save processing time and improve work efficiency. |
| Average power consumption | ≤3KW |
| Machine Size | 1600*930*1850mm |
Demo Marking Sample
Application for Jeans Laser Marking Machine
Applicable industry: This kind of Dynamic 3d Laser Marking Machine is widely applied in glasses industry, leather products, clothing industry, wood products industry, craft gifts, packaging industry.
Applicable materials: This kind of 3d Dynamic Laser Marking Machine i is widely applied for most of the non-metallic materials, such as leather, cloth, wood, bamboo, paper, organic materials, acrylic and other

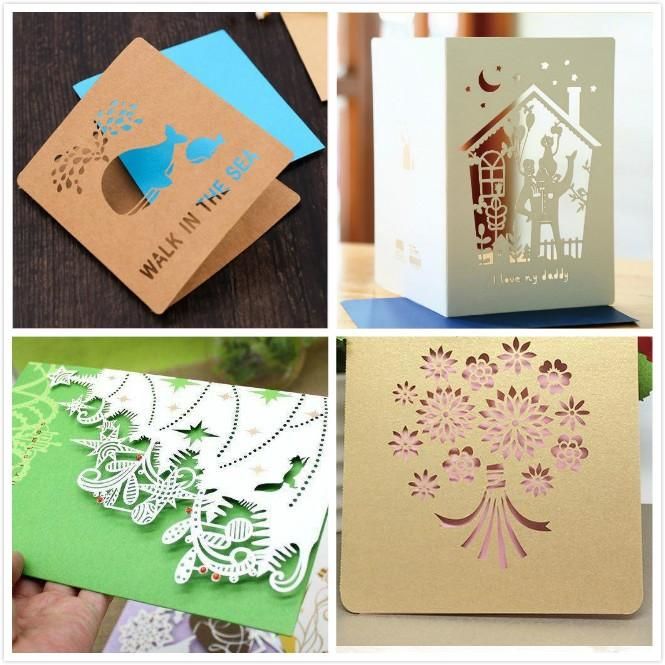

Greeting card/wedding card/invitation card high precision cutting:

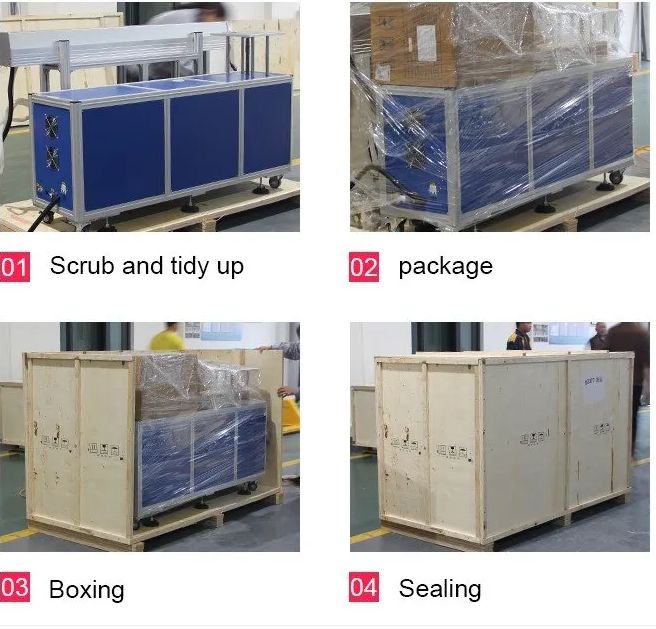

Packing

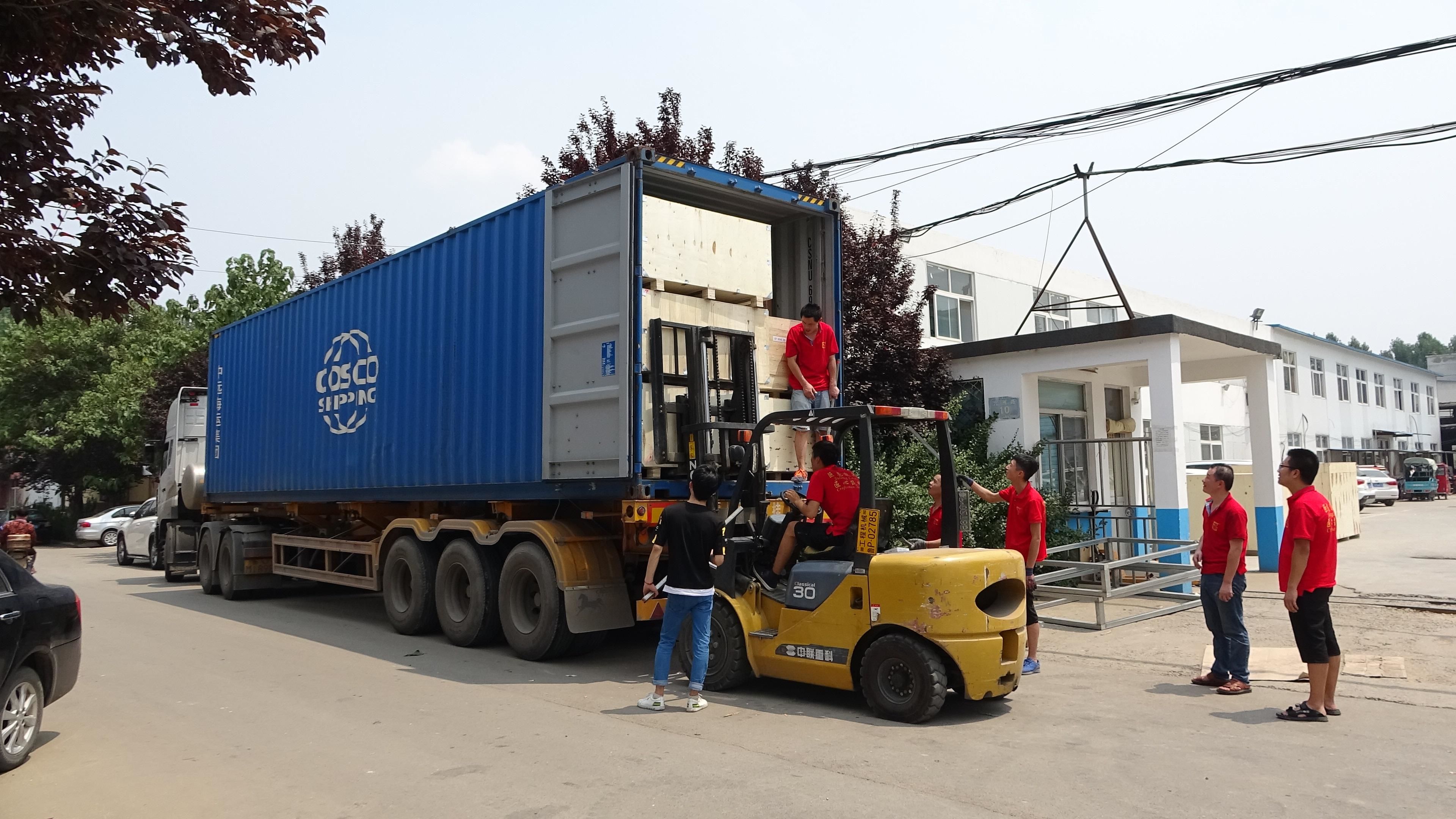

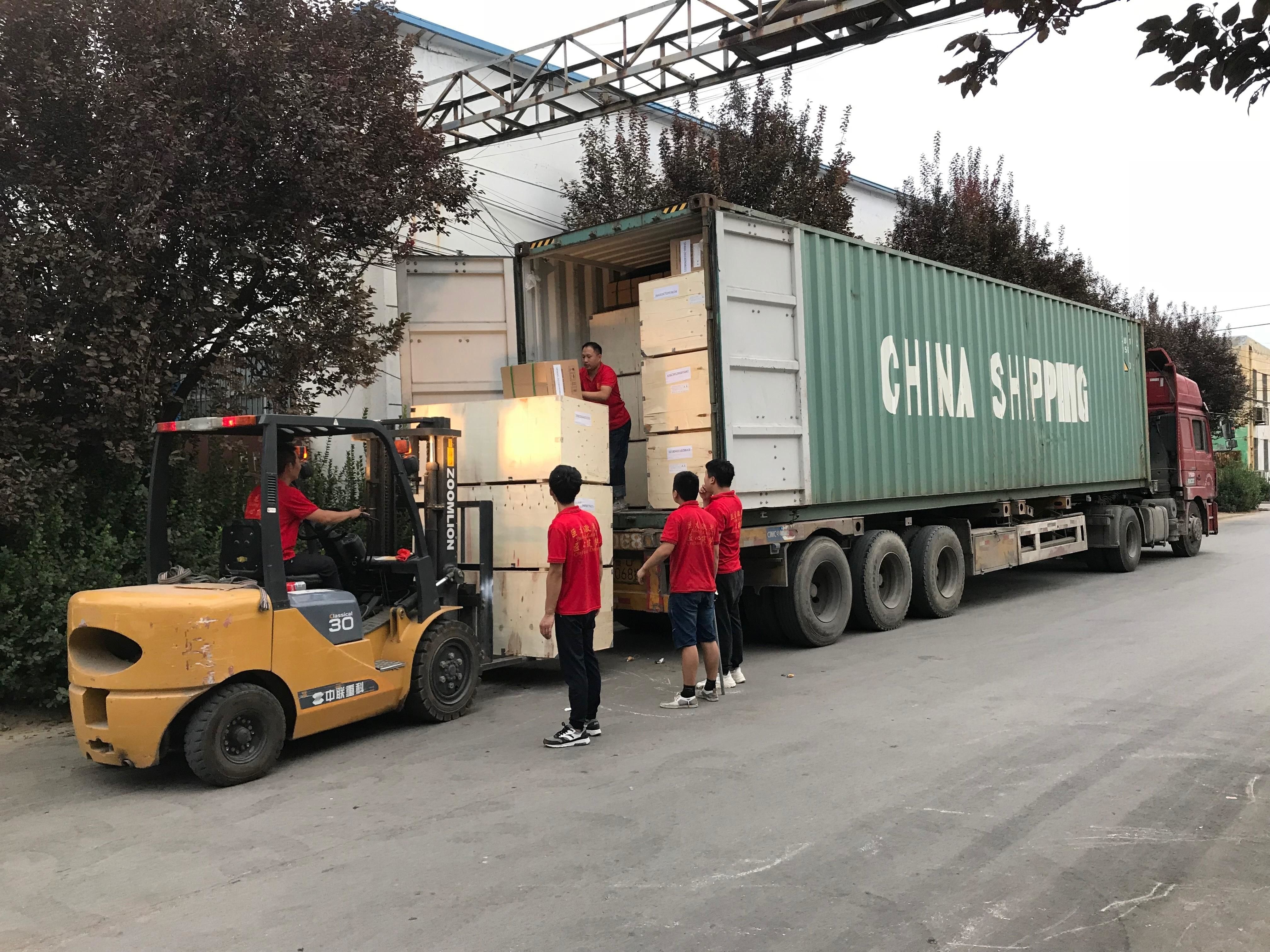

Shipping
