Small Type Fiber Laser Marking Machine (HRC-20RS)

Short Description:

Product Detail

Product Tags

Product Features

1,High speed with galvanometer

2,Small volume,light weight

3,Low power,consumption power is less than 500W.

4,Completely air cooling,low power consumption.

5,No influence of the environment and temperature change.If no power,battery and car cigarette lighter can be used for working.

6,Greatly reduce the depreciation cost,satisfying customers`stable large quantities production

Model HRC- 20RS
Work Area(MM) 110X110/150*150(Optional)
Laser Power 20W
Laser Repetition Frequency1 KHz-400KHz
Wavelength 1064nm
Beam Quality <2M2
Min Line Width 0.01MM
Min Character 0.15mm
Marking Speed <7000mm/s
Marking Depth <0.5mm/Adjustable depending on the materials
Repeat Precision +_0.002MM
Power Supply 220V(±10%)/50Hz/4A
Gross Power <500W
Laser Module Life 100000Hours
Cooling Style Air Cooling
System Composition Control System, HP Laptop, Separated Type
Working Environment Clean and Dust Free
Operating Temperature 10℃-35℃
Humidity 5% to75% (Free of Condensed Water)
Power AC220V, 50HZ, 10Amp Stable Voltage
Warranty 24 Months

Machine Details

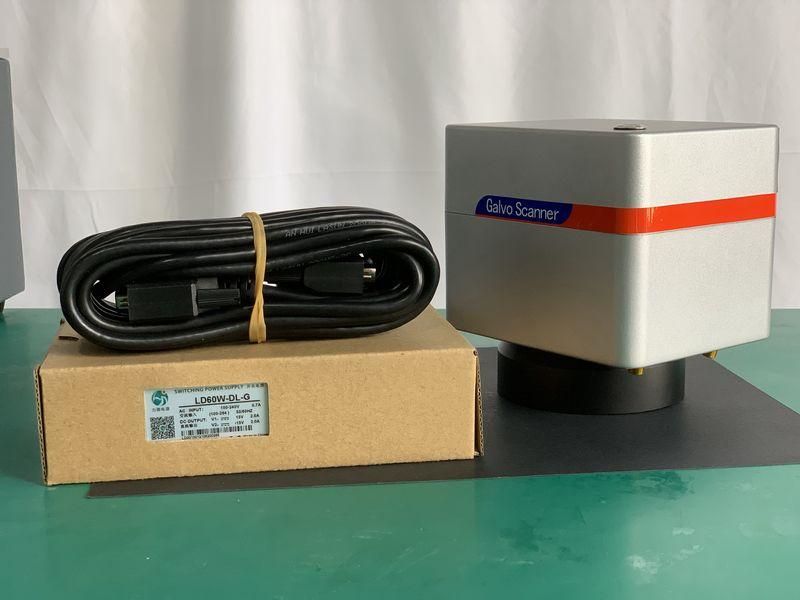

Galvo Head

Famous brand Sino-galvo,high speed galvanometer scan adopting SCANLAB technology,digital signal,high precision and speed.

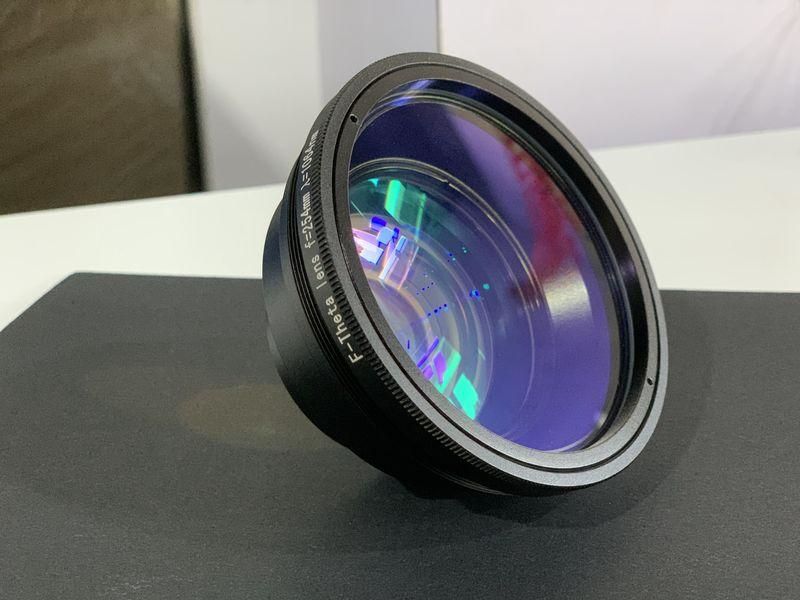

Field Lens

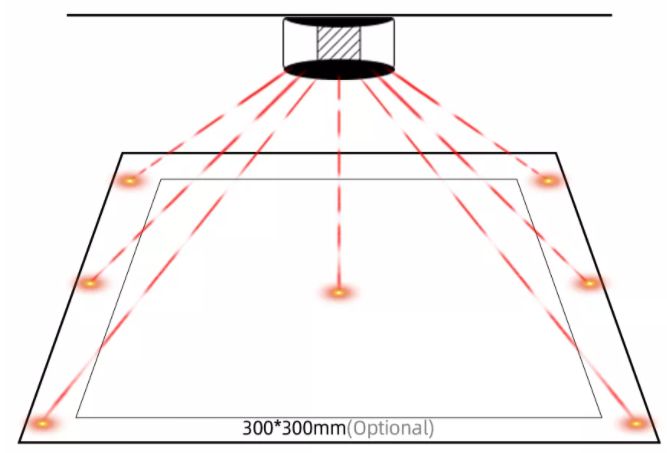

We use famous brand to provides precision laser,standard 110x110mm marking area,Optional 145x145mm

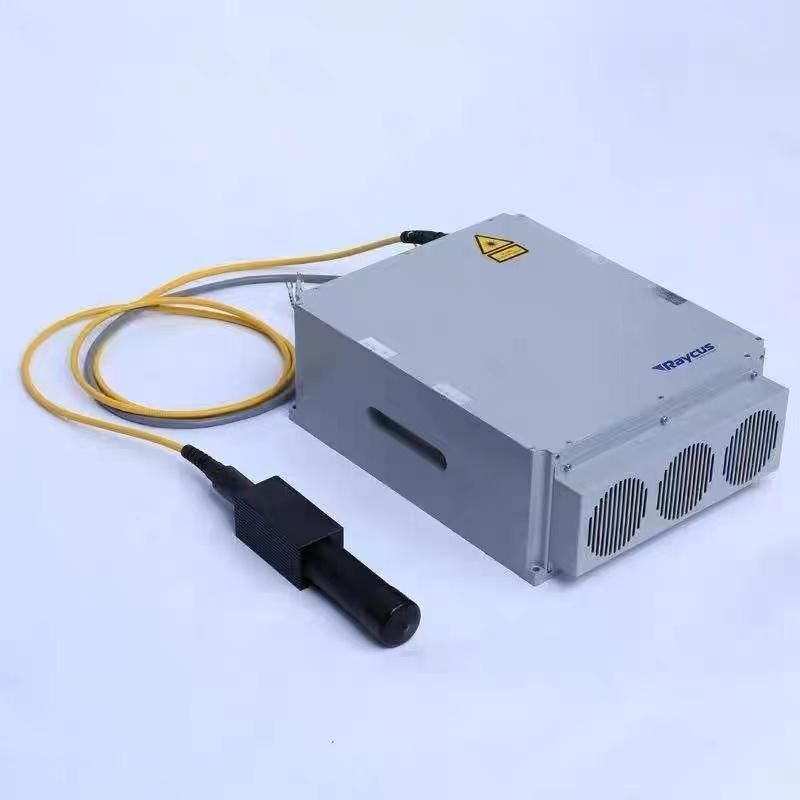

Laser source


We use Raycus Laser Source,A widely selectivity of operating wave-lengths,ultra-low amplitude noise,high stability and ultra-long lifetime.

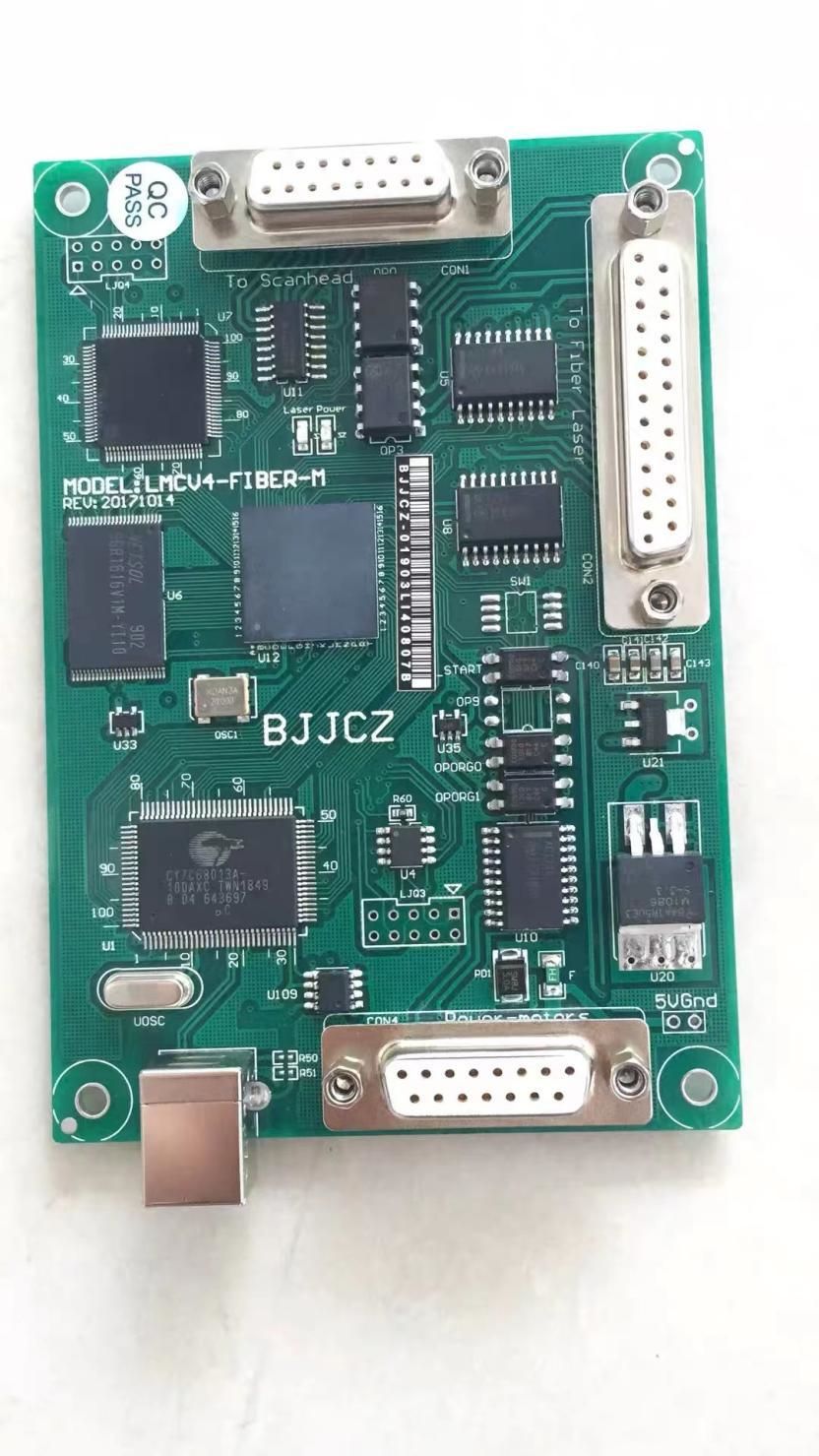

1,Powerful editing function.

2,friendly interface

3,Easy to use

4,Support microsoft windows XP,VISTA,Win7,Win10 system.

5,Support ai,dxf,dst,plt.bmp,jpg,gif,tga,png,tif and other file formats.

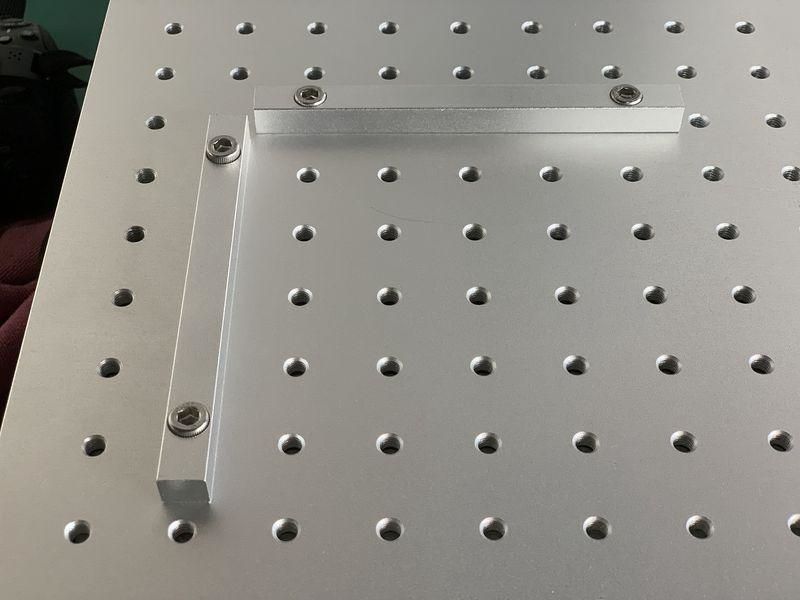

1,easy to put kinds of materials on the worktable.

2,There are multiple flexible screw holes on the worktable convenient for customized installation.
