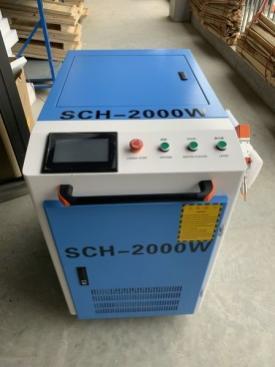

Fiber Laser Cleaning Machine
Product Description
* The laser cleaning machine is a new generation of high-tech product for surface cleaning. It’s very easy to install and operation. It could be used with no chemical reagents,no media, dust-free and anhydrous cleaning, with the advantages of auto focus, fit crank surface cleaning, high surface cleanliness.
The laser cleaning machine can clear the surface resin, oil, dirt, dirt, rust, coating, coating, paint, etc. Laser rust removal machine is with portable laser gun.
Technical Data
| NO | Description | Parameter |
| 1 | Model | AKH-1000 / AKH-1500 / AKH-2000 |
| 2 | Laser Power | 1000W / 1500W / 2000W |
| 3 | Laser Type | JPT / Raycus / Reci |
| 4 | Central wavelength | 1064nm |
| 5 | Line length | 10M |
| 6 | Cleaning efficiency | 12 ㎡/h |
| 7 | Support language | English, Chinese, Japanese, Korean, Russian, Spanish |
| 8 | Cooling Type | Water cooling |
| 9 | Average Power (W), Max | 1000W |
| 10 | Average Power (W), Output Range (If adjustable) | 0-1000 |
| 11 | Pulse-Frequency (KHz),Range | 20-200 |
| 12 | Scanning Width (mm) | 10-80 |
| 13 | Expected Focal Distance(mm) | 160mm |
| 14 | Input Power | 380V/220V, 50/60H |
| 15 | Dimensions | 1240mm×620mm×1060mm |
| 16 | Weight | 240KG |
 |

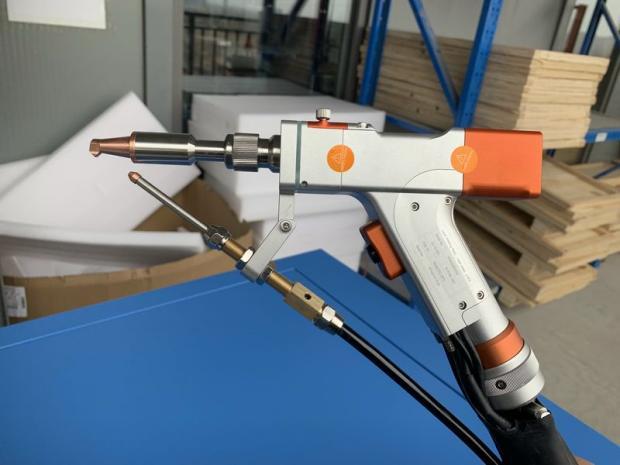

HANWEI Laser Cleaning Head*Using a handheld cleaning gun design,it can flexibly respond to various objects and angles.
* Easy to operate and portable move. |
 |

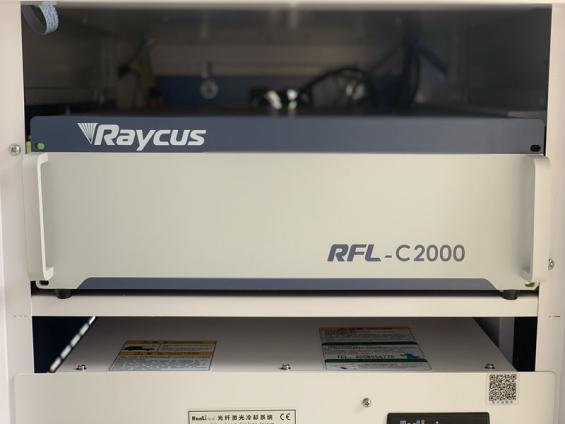

Raycus Laser Generator 1000W*Raycus has an efficient and professional R&D and production team,which is the top quality in China.
*The lasers have higher electro-optical conversion effiency,higher and more stable optical quality. |
 |
HANWEI Controller*Strong compatibility.Multiple light emission modes.Maintenance-free,and long service life. |
 |

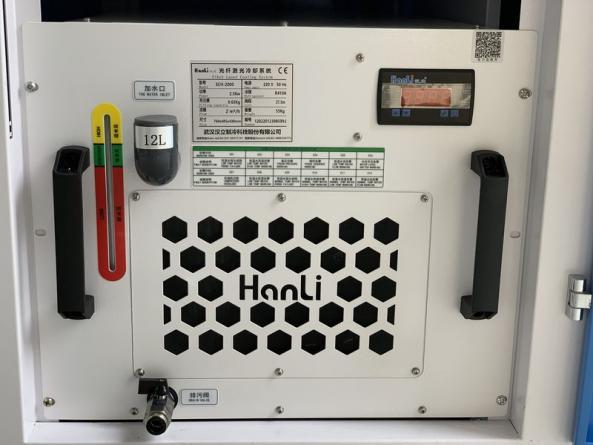

HANLI water Chiller*Specially developed for fiber laser equipment,excellent cooling effect.
*Stable and reliable performance,low failure rate,energy efficient. |
Samples
* Surface oil, stains, dirt cleaning
* Metal surface rust removal
* Rubber mold residue cleaning
* Welding surface / spray surface pretreatment
* Surface coating, coating removal
* Surface paint removal, paint stripping treatment
* Stone surface dust and attachment removal
Warranty
1) 3 years quality guaranty of whole machine, Life long free technical support and engineers visit, 1.5 Year for Core Components
2)Free training course at our plant.
3)We will provide the consumable parts at an agency price when you need replacement.
4)24 hours on line service each day, free technical support.
5)Machine has been adjusted before delivery.
6)Payment Term: 50% T/T paid in advance as deposit, the balance paid before shipment.
Other payment terms: Western Union and so on.
7) All Documents for clearance customs support : Contract ,Packing list,CommercialInvoice,Export declaration and so on.
Company Introduce

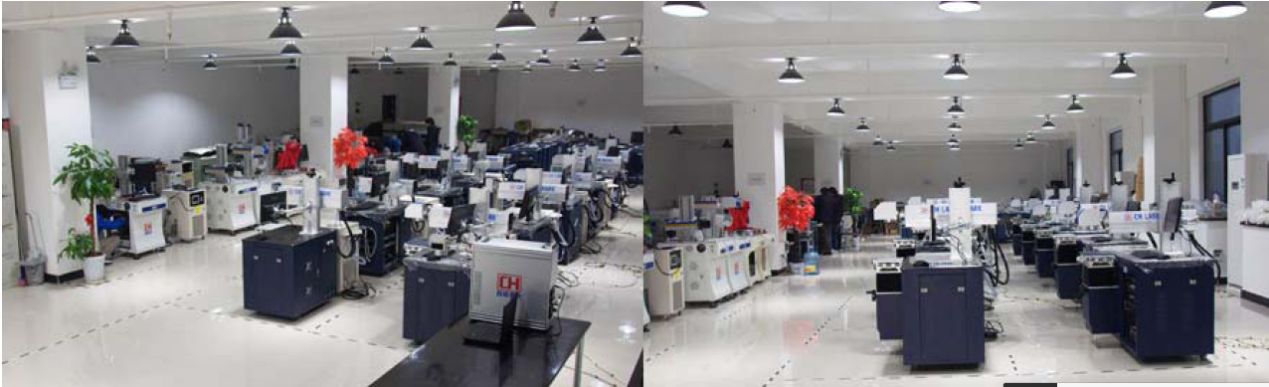

Wuhan HRC Laser is a professional manufacturer of high quality fiber, and CO2 based laser equipments with competitive price for 18 years since the year of 1998.
We have a modernized manufacturing base and a high quality team; the scientific andtechnical personnel account 80% of the workforce, the number of senior technical staff accounts for 30%. Over the years, our company has established partnerships with many domestic research institutes, insisting on the policy of scientific and technological innovation, customer satisfaction.
Since foundation, with strict management and innovative spirit, we have successfullydeveloped a number of advanced expertise. Our products include Fiber laser machines,CO2 laser machines, Laser cleaning machine,Laser welding machine, as well as the whole set of production solutions of on-line laser marking machines designed for clients. Currently, our products have been exported to India, S Korea, Pakistan ,Spain, Slovenia, Russia, Italy and more. They are widely used in electronic components, manufacturing, machinery, internal combustion engines, auto parts, medicine, food, household industrial and defense industries.
We not only provide clients excellent satisfying equipments but also timely lifetime services,like technical advice and after-sales service. We are glad to cooperate with the clients from all over the world.
