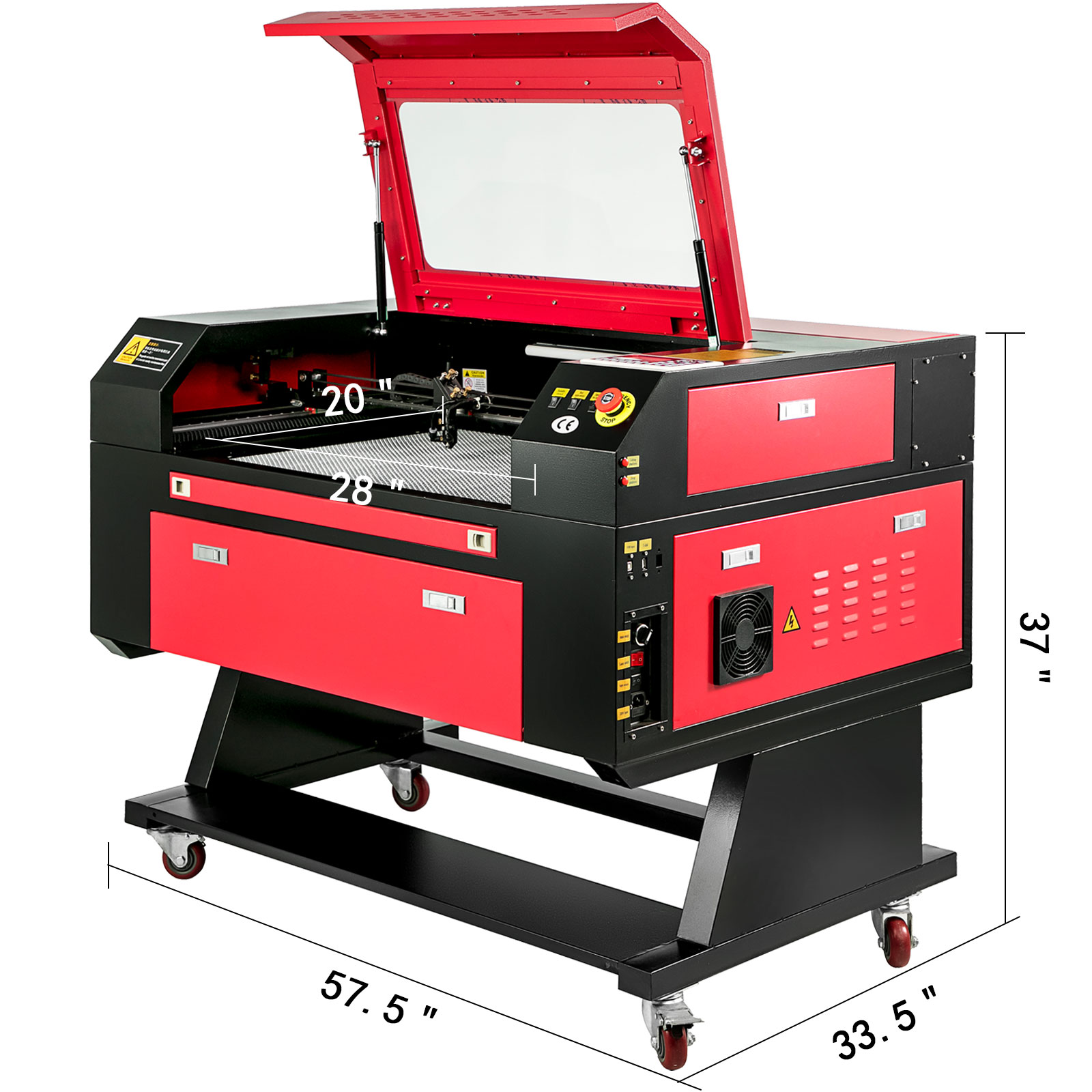

900x600mm CO2 Laser Engrave and Cutting Machine

Short Description:

HRC laser cutting machine is specially designed and manufactured for the cutting needs of acrylic board, plastic board, electronic film, leather and wood board. The unique design makes the cut surface of the board very smooth and flat. The system works very smoothly.

Product Detail

Product Tags

Function and Application

1. Using high-frequency uniform power sealed off-type CO2 laser developed by domestic top technology, the laser power can be output evenly for 24 hours, with abundant energy and strong anti-interference ability.
2. The mechanical system adopts the integrated design close to ergonomics, which is convenient and comfortable to operate; the power system adopts Taiwan linear guide; the movement track is smooth and delicate, and the speed precision is greatly improved.
3. The optical system uses reflection and full transmittance silicon lens, the beam quality is fine and constant, the cutting depth is large, and the engraving precision is high.
4. Intelligent software editing, users can set the acceleration and deceleration / uniform speed operation according to the processing needs, graphic output can be cleaned, hook line, cut one-time completion, with software compatible with AUTOCAD\CORELDRAW\PHOTOSHOP.

Application Industry

Craft gifts, packaging boards, daily necessities models, tone leather, advertising and decoration, bamboo and wood products, electronic appliances, lighting, paper products, crystal characters, mobile phone screens, PET, mobile phone accessories and other die-making.

Applicable Materials

Laser Engrave and Cutting Machine

Plexiglass, synthetic natural leather, plastic, PVC, paper, wood, bamboo, rubber, resin, digital photo frame cutting, self-adhesive die, electronic display, mobile phone touch screen, backlight board, LED and etc.


● CE Certification, ISO9001 Quality Certification.
● Smooth and Precise Engraving and Cutting.
● Supports CorelDraw and Auto CAD.
● Optimization of mechanical and electrical design.
● More friendly control panel with Color Screen.
● English, French, German, Italian, Spanish and more languages updating.
● Separation of cutting up to 256 Colors.
● One key to install, more convenient.
● Use virtual array list and additional off-cut graph to realize the off-cut function.
● Machines with feeding devices can realize the cyclical model of working-feeding-working.
● USB Interface, U-Flash Disk Supported, Machine will read files from memory stick, you can work even without a PC.
● Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
● Adopt advanced DSP digital control system, international standard laser power supply, integrated framework style.
● 2 years free warranty and life time free maintenance service.

Technical Parameter

Model HRC-640/HRC-960/HRC-1490
Working area 600*400mm/900*600mm/1300*900mm.etc
Laser Power 60W(80W/100W Option)
Laser Type Co2
Water Chiller CW3000(5200 Option)
Laser Head No. One
Linear rail Taiwan HIWIN
Table One Blade table&one Honeycomb table
Cooling method Water cooling/Water break protection
Engrave Speed 0~1000mm/s
Cut Speed 0~600mm/s
Resolution ±0.01mm
System RDC6445G with WIFI
Software RD works v8
Graphic format support BMP, PLT, DST, DXF, AI, JPG, etc.
Software supported Autocad, Coreldraw,Photoshop, etc.
Laser output 0-100%
Operating temperature 0-45℃
Operating Humidity 5-95%
Working mode Leadshine stepper motor ( Servo motor)
Gross power 1200w
Min shaping character 1*1mm English
Voltage 220V±10%, 50-60Hz, single phase ( 110V- option)
Resolution 4000DPI
Option 1 z axis motorized up-down
Option 2 Auto focus
Option 3 Remote controller
Package Plywood case

Machine Details

Reci Laser Tube

W4 100-130W power, Longer warranty, stronger power.

130w CO2 laser engraving cutting
laser cutter laser engraver laser engraving machine laser cutter and engraver machine co2 laser laser cutting machine k40 laser cutter laser engraver for wood and metal laser cutter machine motor tech k40 laser laser engraver machine laser engraver 1500mw lazer engraving machines glow forge

Digital Operation Panel

Adopts advanced TopWisdom digital control system, with multi-language (English, French, German, Italian, Spanish, and more languages updating) available, which is more intuitive, simple and more convenient.

130w CO2 laser engraving cutting

Large Working Area

With large working area , featuring bending table, which adopts honeycomb structure, with high strength, anti-deformation, sound absorption and heat insulation.

130w CO2 laser engraving cutting

USB & U-Disk Connectivity

Equipped with a USB port for convenient connection to desktop or laptop. U-disk is also available for direct inserting of the U disk to read and write.

130w CO2 laser engraving cutting

Premium Laser Head

Industrial grade 80W laser head, with high quality, reliable performance and durability, improves the engraving precision and performance.

130w CO2 laser engraving cutting

Well-Designed Details

Features high precision micro stepping motor and high-quality reflector for strong performance. Switches and emergency button for better control. The built-in cooling fan reduces temperature of all components. With 4 caster wheels for convenient movement.

130w CO2 laser engraving cutting

Water Chiller

CW5000:Good enough for the machine continuous working 24hours

130w CO2 laser engraving cutting

Exhaust Fan

550w fan, for the strong sucktion
