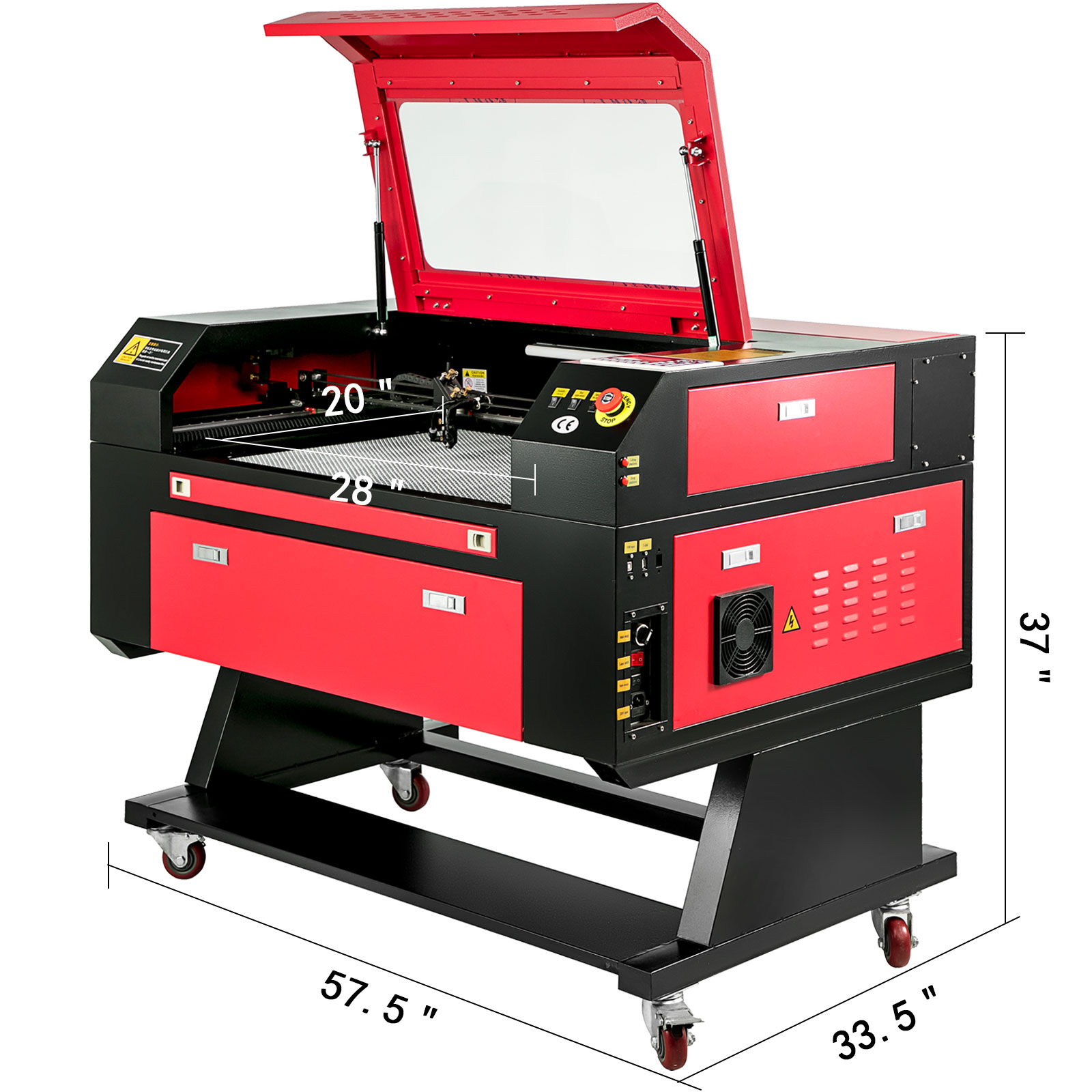

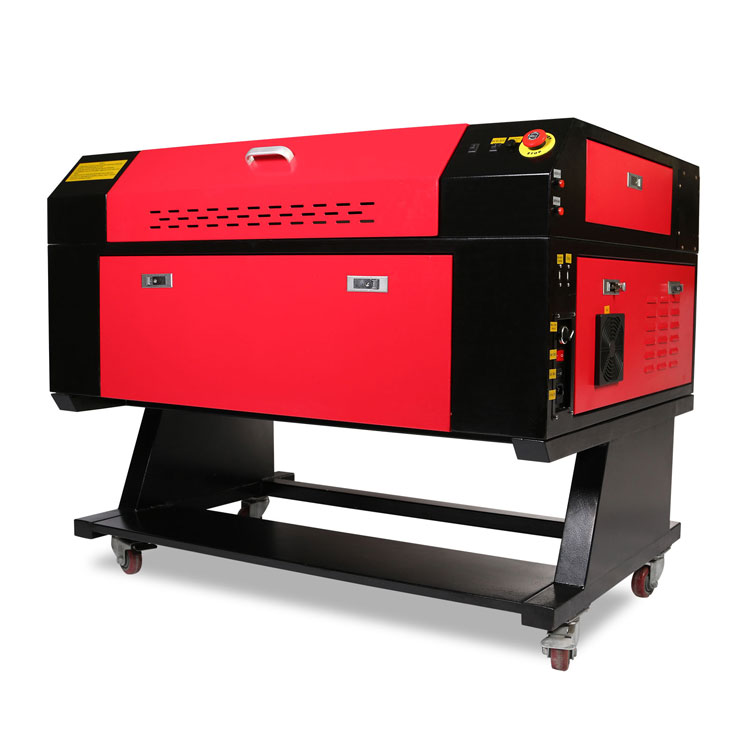

100w co2 laser engraving machine

Short Description:

New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes, toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.

Product Detail

Product Tags


This machine is equipped with DSP Control System for RDdraw directly, also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files, you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes. And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.

100w co2 laser engraving machine
100w co2 laser engraving machine

Technical Parameter

Model HRC-640/HRC-960/HRC-1490
Working area 600*400mm/900*600mm/1300*900mm.etc
Laser Power 60W(80W/100W Option)
Laser Type Co2
Water Chiller CW3000(5200 Option)
Laser Head No. One
Linear rail Taiwan HIWIN
Table One Blade table&one Honeycomb table
Cooling method Water cooling/Water break protection
Engrave Speed 0~1000mm/s
Cut Speed 0~600mm/s
Resolution ±0.01mm
System RDC6445G with WIFI
Software RD works v8
Graphic format support BMP, PLT, DST, DXF, AI, JPG, etc.
Software supported Autocad, Coreldraw,Photoshop, etc.
Laser output 0-100%
Operating temperature 0-45℃
Operating Humidity 5-95%
Working mode Leadshine stepper motor ( Servo motor)
Gross power 1200w
Min shaping character 1*1mm English
Voltage 220V±10%, 50-60Hz, single phase ( 110V- option)
Resolution 4000DPI
Option 1 z axis motorized up-down
Option 2 Auto focus
Option 3 Remote controller
Package Plywood case

Machine Details

Reci Laser Tube

W4 100-130W power, Longer warranty, stronger power.

130w CO2 laser engraving cutting
laser cutter laser engraver laser engraving machine laser cutter and engraver machine co2 laser laser cutting machine k40 laser cutter laser engraver for wood and metal laser cutter machine motor tech k40 laser laser engraver machine laser engraver 1500mw lazer engraving machines glow forge

Digital Operation Panel

Adopts advanced TopWisdom digital control system, with multi-language (English, French, German, Italian, Spanish, and more languages updating) available, which is more intuitive, simple and more convenient.

130w CO2 laser engraving cutting

Large Working Area

With large working area, featuring bending table, which adopts honeycomb structure, with high strength, anti-deformation, sound absorption and heat insulation.

130w CO2 laser engraving cutting

USB & U-Disk Connectivity

Equipped with a USB port for convenient connection to desktop or laptop. U-disk is also available for direct inserting of the U disk to read and write.

130w CO2 laser engraving cutting

Premium Laser Head

Industrial grade 80W laser head, with high quality, reliable performance and durability, improves the engraving precision and performance.

130w CO2 laser engraving cutting

Well-Designed Details

Features high precision micro stepping motor and high-quality reflector for strong performance. Switches and emergency button for better control. The built-in cooling fan reduces temperature of all components. With 4 caster wheels for convenient movement.

130w CO2 laser engraving cutting

Water Chiller

CW5000:Good enough for the machine continuous working 24hours

130w CO2 laser engraving cutting

Exhaust Fan

550w fan, for the strong sucktion
