Fiber Laser Cleaning Machine

Short Description:

The laser cleaning machine is a new generation of high-tech product for surface cleaning. It’s very easy to install and operation. It could be used with no chemical reagents, no media, dust-free and anhydrous cleaning, with the advantages of auto focus, fit crank surface cleaning, high surface cleanliness.

The laser cleaning machine can clear the surface resin, oil, dirt, dirt, rust, coating, coating, paint, etc. Laser rust removal machine is with portable laser gun.


Product Detail

Product Tags

Fiber Laser Cleaning Machine

Technical Data

NO Description Parameter
1 Model AKH-1000 / AKH-1500 / AKH-2000
2 Laser Power 1000W / 1500W / 2000W
3 Laser Type JPT / Raycus / Reci
4 Central wavelength 1064nm
5 Line length 10M
6 Cleaning efficiency 12 ㎡/h
7 Support language English, Chinese, Japanese, Korean, Russian, Spanish
8 Cooling Type Water cooling
9 Average Power (W), Max 1000W
10 Average Power (W), Output Range (If adjustable) 0-1000
11 Pulse-Frequency (KHz),Range 20-200
12 Scanning Width (mm) 10-80
13 Expected Focal Distance(mm) 160mm
14 Input Power 380V/220V, 50/60H
15 Dimensions 1240mm×620mm×1060mm
16 Weight 240KG

Product Detail Drawing

Fiber Laser Cleaning Machine

HANWEI Laser Cleaning Head

*Using a handheld cleaning gun design,it can flexibly respond to various objects and angles.

* Easy to operate and portable move.

Fiber Laser Cleaning Machine

Raycus Laser Generator 1000W

*Raycus has an efficient and professional R&D and production team,which is the top quality in China.

*The lasers have higher electro-optical conversion effiency,higher and more stable optical quality.

Fiber Laser Cleaning Machine

HANWEI Controller

*Strong compatibility.Multiple light emission modes.Maintenance-free,and long service life.

Fiber Laser Cleaning Machine

HANLI water Chiller

*Specially developed for fiber laser equipment,excellent cooling effect.

*Stable and reliable performance,low failure rate,energy efficient.

Fiber Laser Cleaning Machine

Samples

Fiber Laser Cleaning Machine

* Surface oil, stains, dirt cleaning

* Metal surface rust removal

* Rubber mold residue cleaning

* Welding surface / spray surface pretreatment

* Surface coating, coating removal

* Surface paint removal, paint stripping treatment

* Stone surface dust and attachment removal

Warranty

1. 3 years quality guaranty of whole machine, Life long free technical support and engineers visit, 1.5 Year for Core Components

2. Free training course at our plant.

3. We will provide the consumable parts at an agency price when you need replacement.

4. 24 hours on line service each day, free technical support.

5. Machine has been adjusted before delivery.

6. Payment Term: 50% T/T paid in advance as deposit, the balance paid before shipment.

Other payment terms: Western Union and so on.

7. All Documents for clearance customs support : Contract ,Packing list,CommercialInvoice,Export declaration and so on.

Company Introduce

Wuhan HRC Laser is a professional manufacturer of high quality fiber, and CO2 based laser equipments with competitive price for 18 years since the year of 1998.

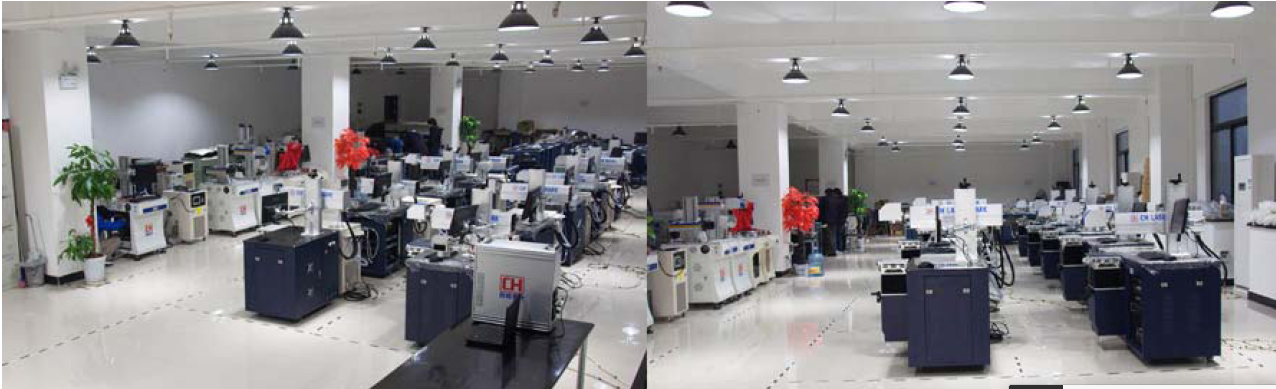

We have a modernized manufacturing base and a high quality team; the scientific andtechnical personnel account 80% of the workforce, the number of senior technical staff accounts for 30%. Over the years, our company has established partnerships with many domestic research institutes, insisting on the policy of scientific and technological innovation, customer satisfaction.

Since foundation, with strict management and innovative spirit, we have successfullydeveloped a number of advanced expertise. Our products include Fiber laser machines, CO2 laser machines, Laser cleaning machine, Laser welding machine, as well as the whole set of production solutions of on-line laser marking machines designed for clients. Currently, our products have been exported to India, S Korea, Pakistan, Spain, Slovenia, Russia, Italy and more. They are widely used in electronic components, manufacturing, machinery, internal combustion engines, auto parts, medicine, food, household industrial and defense industries.

We not only provide clients excellent satisfying equipments but also timely lifetime services, like technical advice and after-sales service. We are glad to cooperate with the clients from all over the world.
