130w CO2 laser engraving cutting

Short Description:

[DURABLE QUALITY]- Adopts 130W CO2 glass sealed laser tube, whose lifetime is up to 2000-4000 hours, premium laser head, international standard laser power supply, and integrated framework design; With large engraving area of 55″x35″ (140x90cm).

[SAFETY & RELIABILITY]- With air assist, removing heat and combustible gases from the cutting surface to prevent burning during engraving working, and with a built-in cooling fan for effective ventilation; Owns ,CE Certification, ISO9001 Quality Certification.


Product Detail

Product Tags

Features & Details

[POWERFUL PERFORMANCE]- Support USB2.0 port, U disk reading and writing, support U disk system upgrade; Able to work independently from PC; Visible red dot pointer for better guidance; Use virtual array list and additional off-cut graph to realize the off-cut function; With feeding devices to realize the cyclical model of working-feeding-working; Separation of cutting up to 256 Colors.

[HIGH COMPATIBILITY]- Supports multiple graphic formats, including HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI, etc. Adopts advanced DSP digital control system, able to directly output from CorelDraw and Auto CAD.

[WIDELY USED]- Can be used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, glass, and etc. Suitable for advertisement, gifts, shoes, toys and etc.

Features

● CE Certification, ISO9001 Quality Certification.
● Smooth and Precise Engraving and Cutting.
● Supports CorelDraw and Auto CAD.
● Optimization of mechanical and electrical design.
● More friendly control panel with Color Screen.
● English, French, German, Italian, Spanish and more languages updating.
● Separation of cutting up to 256 Colors.
● One key to install, more convenient.
● Use virtual array list and additional off-cut graph to realize the off-cut function.
● Machines with feeding devices can realize the cyclical model of working-feeding-working.
● USB Interface, U-Flash Disk Supported, Machine will read files from memory stick, you can work even without a PC.
● Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
● Adopt advanced DSP digital control system, international standard laser power supply, integrated framework style
● 2 years free warranty and life time free maintenance service.

Technical Parameter

Model HRC-640/HRC-960/HRC-1490
Working area 600*400mm/900*600mm/1300*900mm.etc
Laser Power 60W(80W/100W Option)
Laser Type Co2
Water Chiller CW3000(5200 Option)
Laser Head No. One
Linear rail Taiwan HIWIN
Table One Blade table&one Honeycomb table
Cooling method Water cooling/Water break protection
Engrave Speed 0~1000mm/s
Cut Speed 0~600mm/s
Resolution ±0.01mm
System RDC6445G with WIFI
Software RD works v8
Graphic format support BMP,PLT,DST,DXF,AI,JPG,etc.
Software supported Autocad, Coreldraw,Photoshop, etc.
Laser output 0-100%
Operating temperature 0-45℃
Operating Humidity 5-95%
Working mode Leadshine stepper motor ( Servo motor)
Gross power 1200w
Min shaping character 1*1mm English
Voltage 220V±10%, 50-60Hz, single phase ( 110V- option)
Resolution 4000DPI
Option 1 z axis motorized up-down
Option 2 Auto focus
Option 3 Remote controller
Package Plywood case

Machine Details

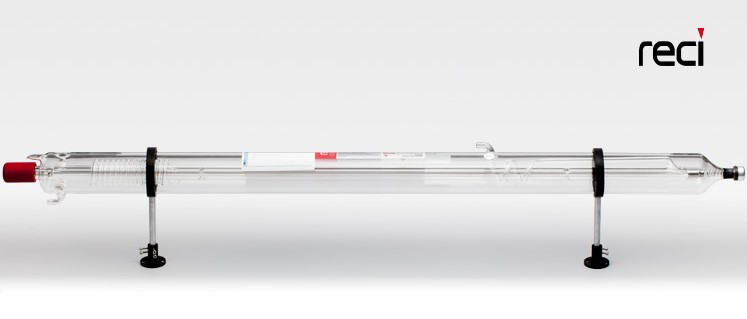

Reci Laser Tube

W4 100-130W power, Longer warranty, stronger power.

130w CO2 laser engraving cutting
laser cutter laser engraver laser engraving machine laser cutter and engraver machine co2 laser laser cutting machine k40 laser cutter laser engraver for wood and metal laser cutter machine motor tech k40 laser laser engraver machine laser engraver 1500mw lazer engraving machines glow forge

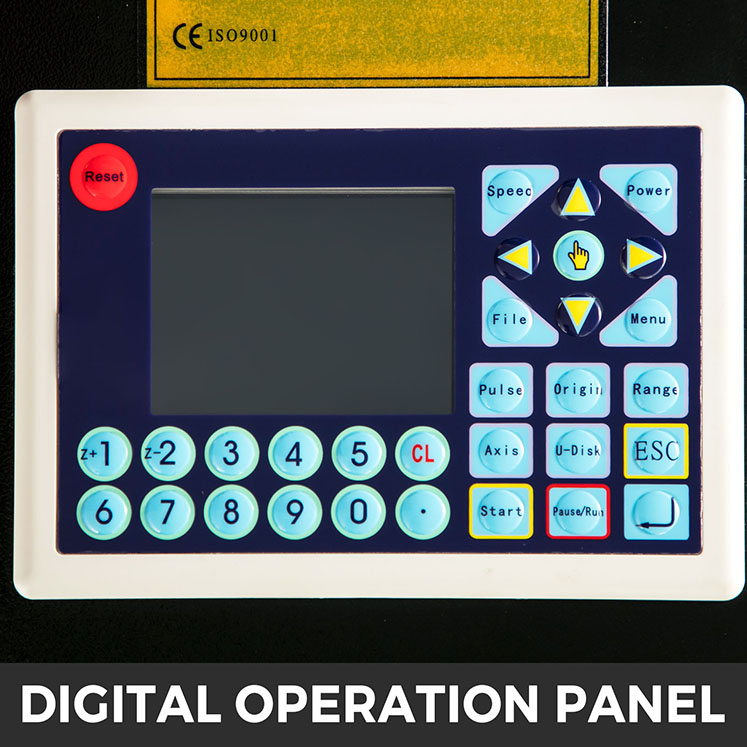

Digital Operation Panel

Adopts advanced TopWisdom digital control system, with multi-language (English, French, German, Italian, Spanish, and more languages updating) available, which is more intuitive, simple and more convenient.

130w CO2 laser engraving cutting

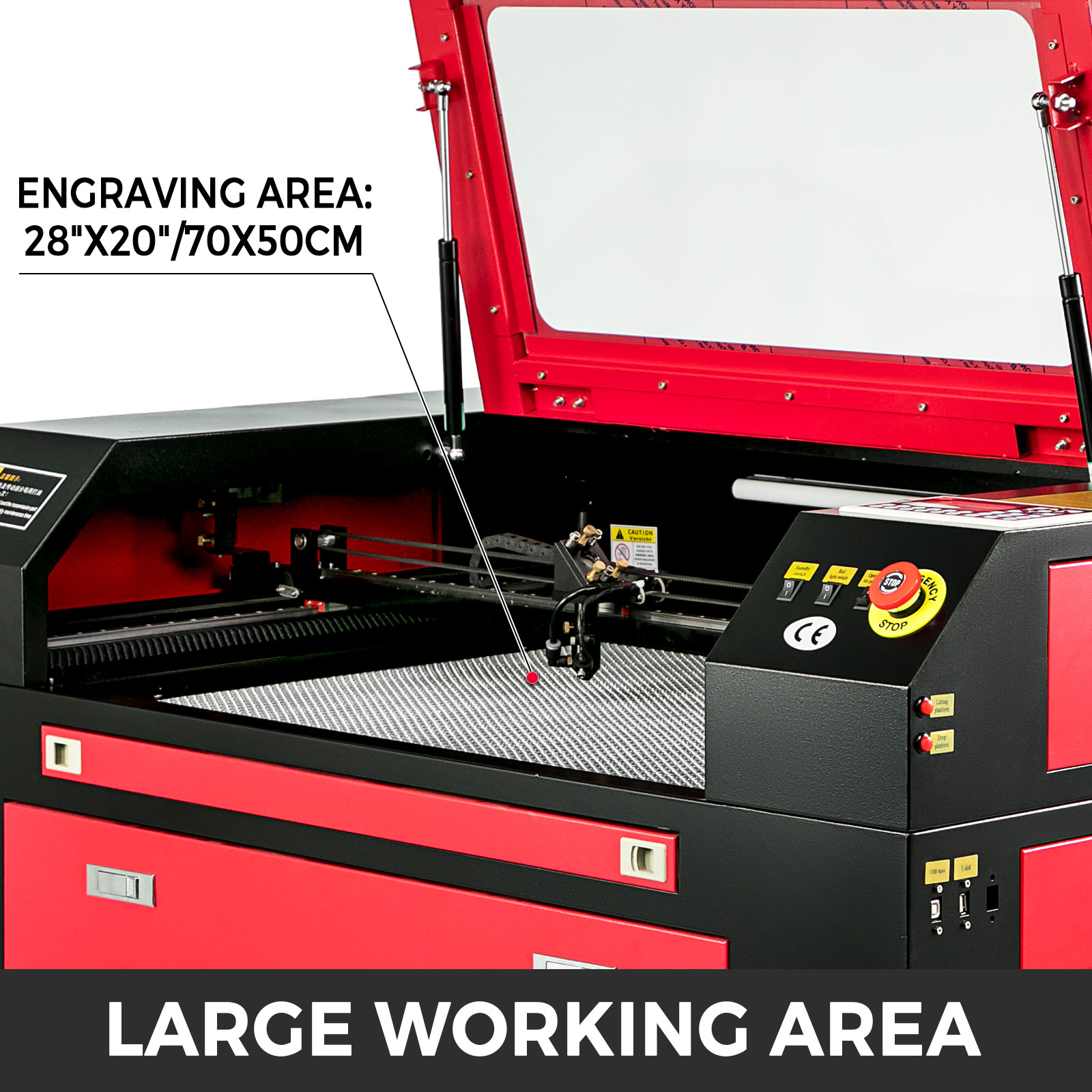

Large Working Area

With large working area , featuring bending table, which adopts honeycomb structure, with high strength, anti-deformation, sound absorption and heat insulation.

130w CO2 laser engraving cutting

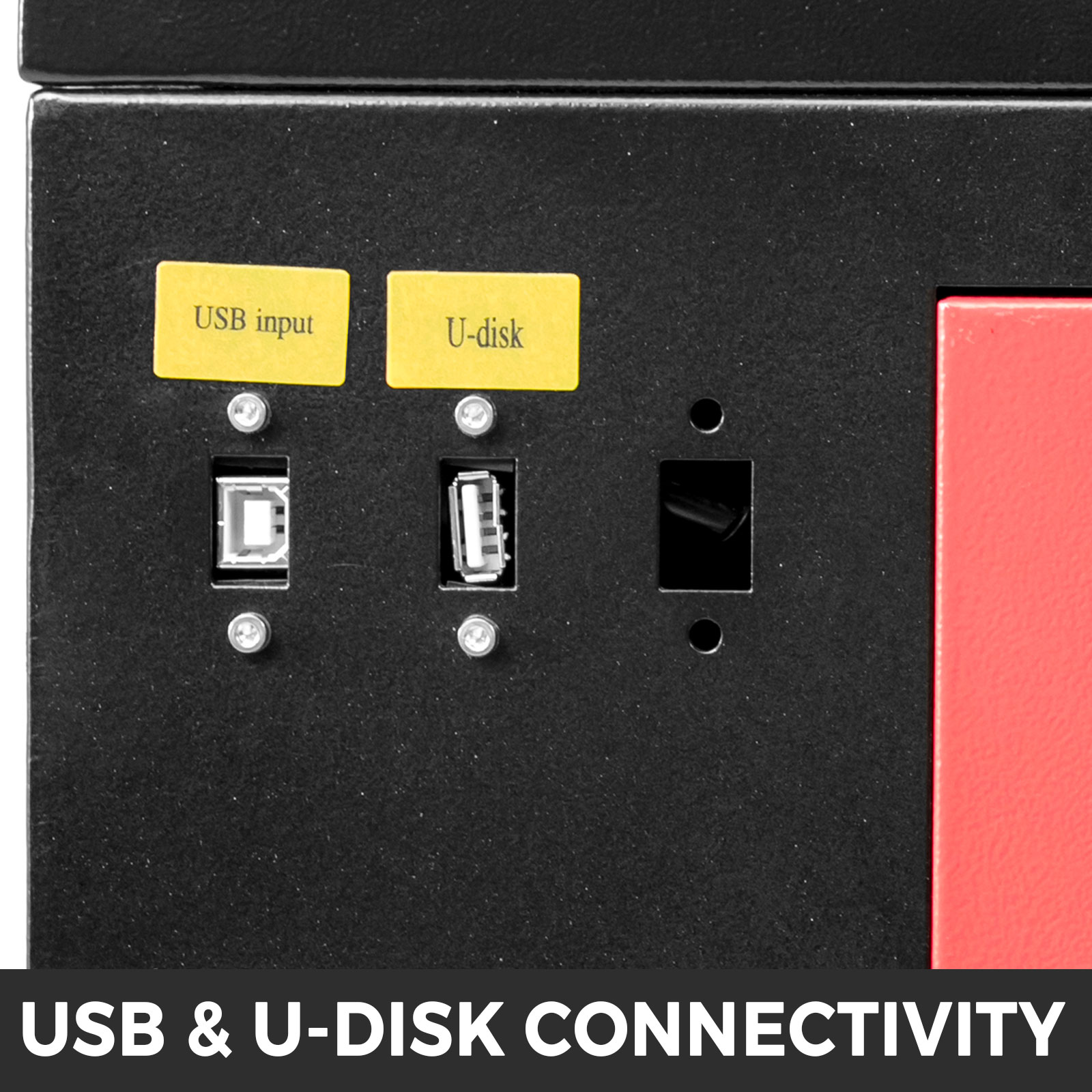

USB & U-Disk Connectivity

Equipped with a USB port for convenient connection to desktop or laptop. U-disk is also available for direct inserting of the U disk to read and write.

130w CO2 laser engraving cutting

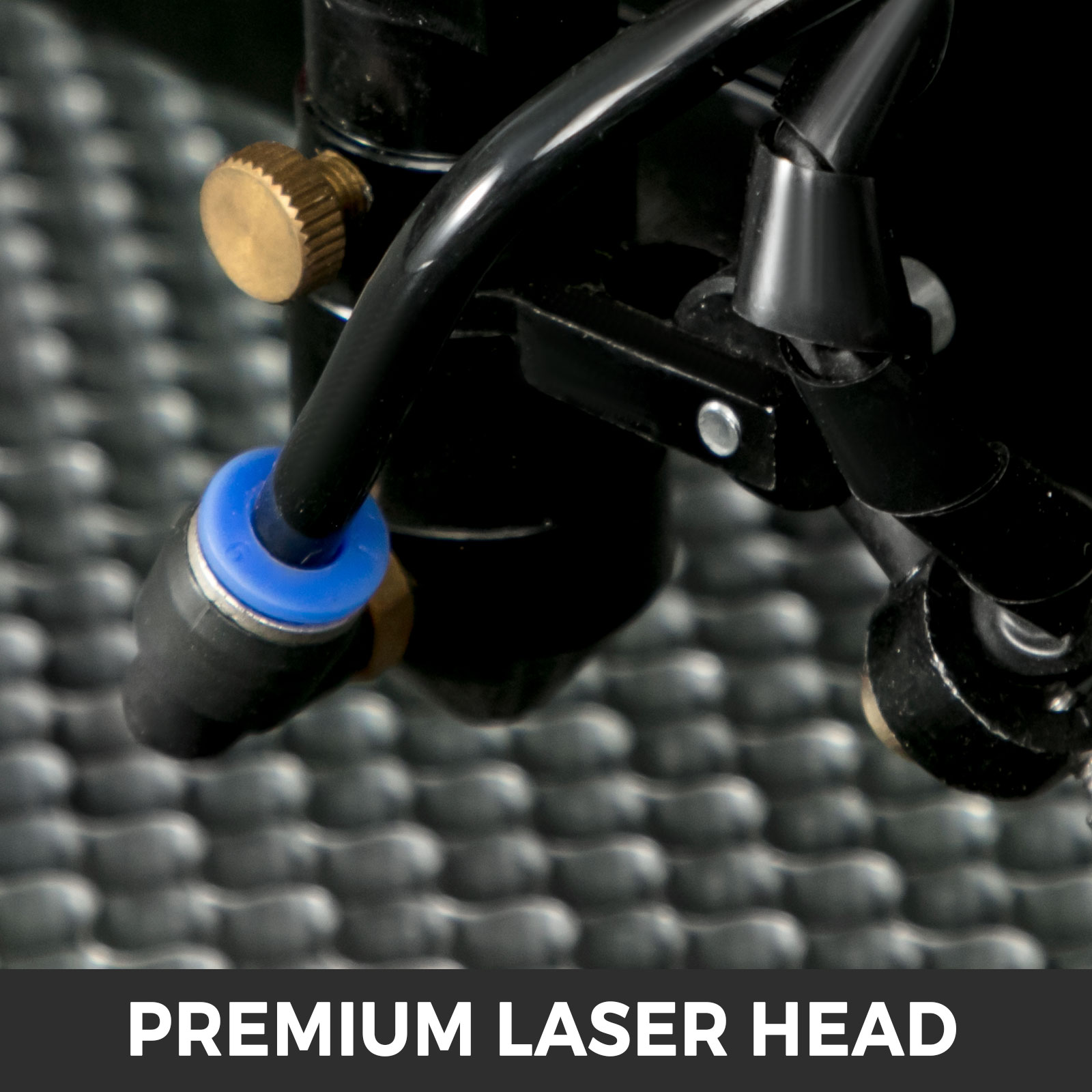

Premium Laser Head

Industrial grade 80W laser head, with high quality, reliable performance and durability, improves the engraving precision and performance.

130w CO2 laser engraving cutting

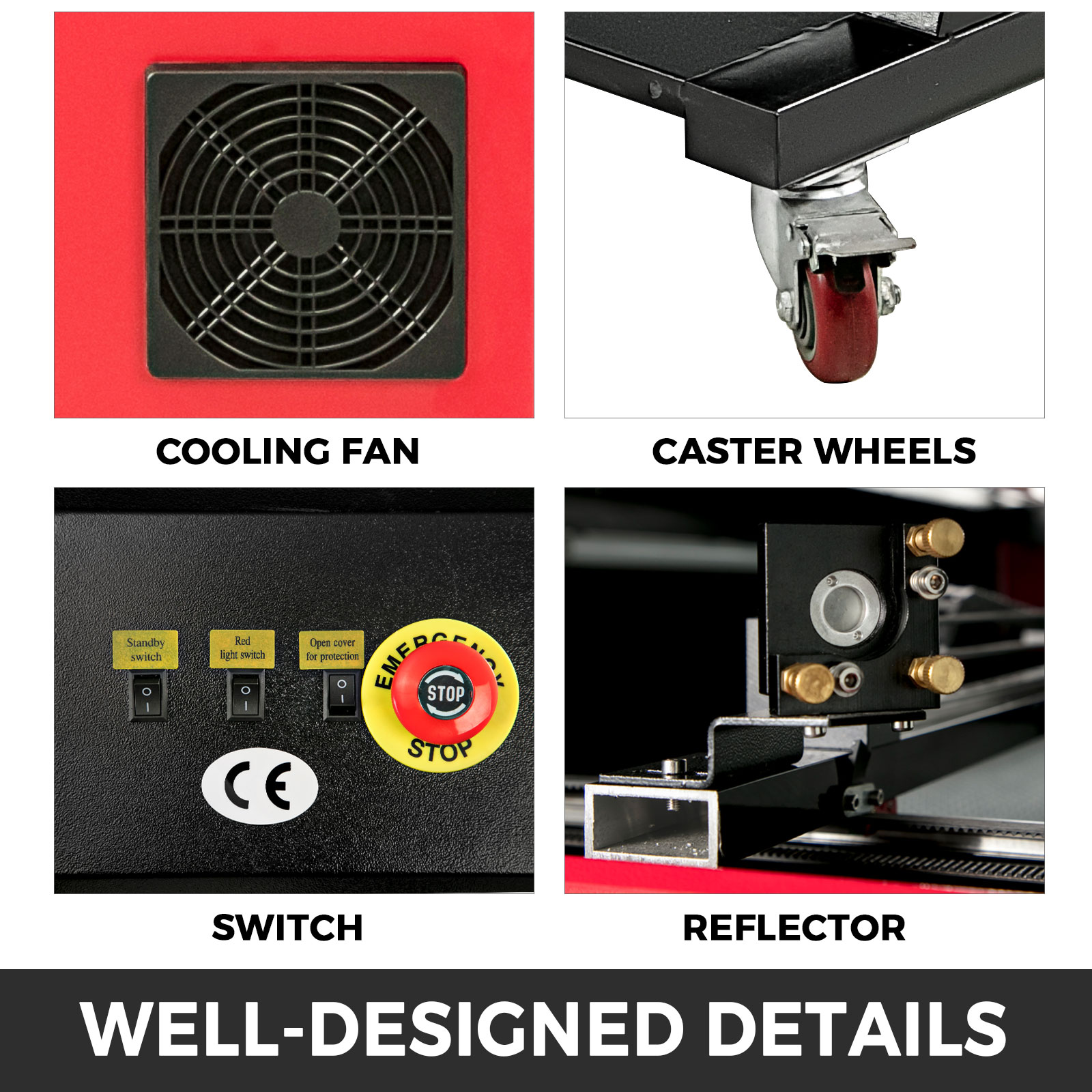

Well-Designed Details

Features high precision micro stepping motor and high-quality reflector for strong performance. Switches and emergency button for better control. The built-in cooling fan reduces temperature of all components. With 4 caster wheels for convenient movement.

130w CO2 laser engraving cutting

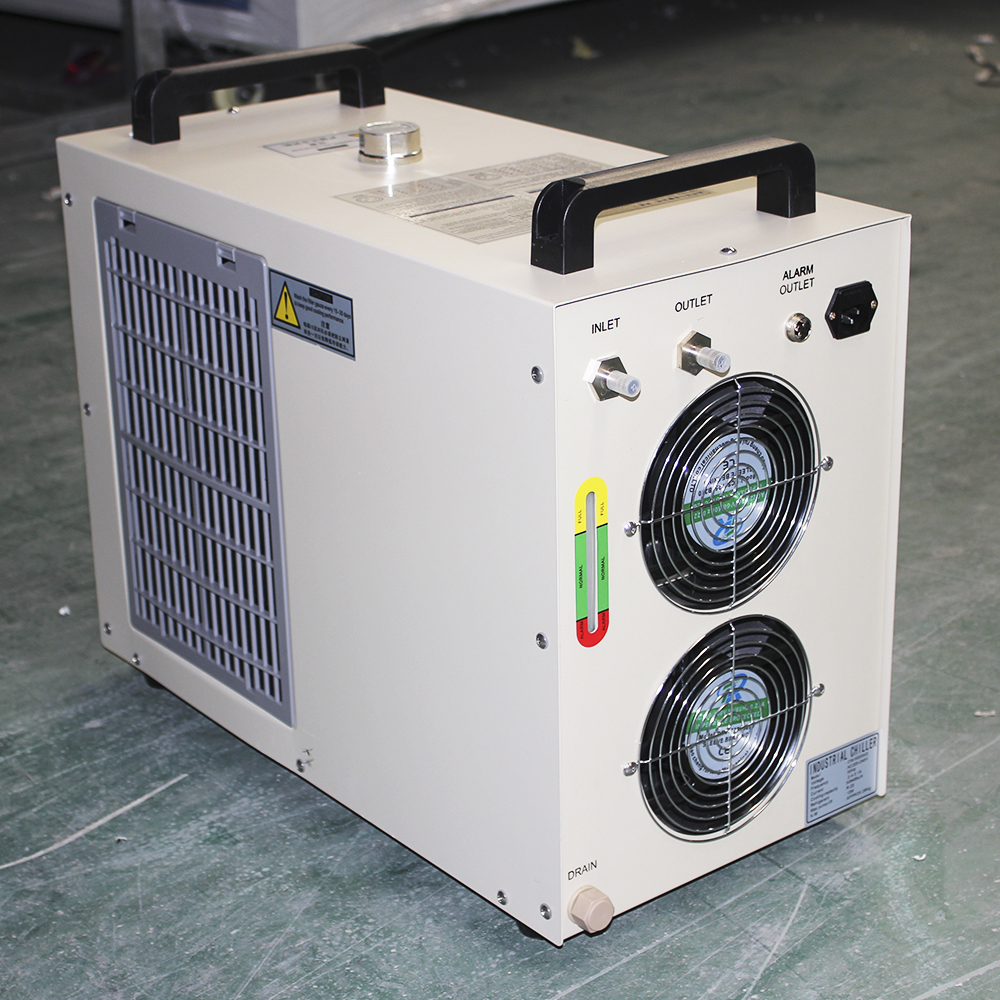

Water Chiller

CW5000:Good enough for the machine continuous working 24hours

130w CO2 laser engraving cutting

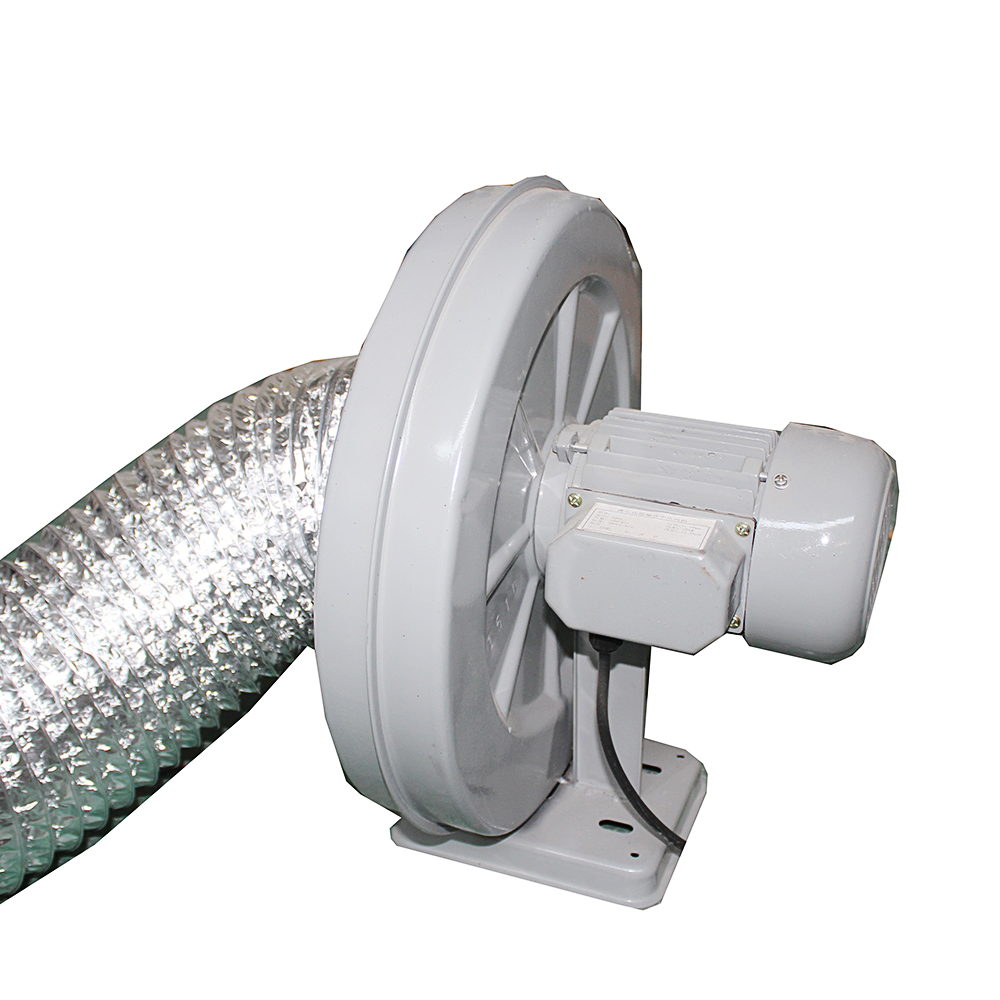

Exhaust Fan

550w fan, for the strong sucktion
