Laser Marking Machine For Gold

Short Description:

Product Detail

Product Tags

Product Description

The fiber laser engraving machine adopts most advanced Germany technology and the fiber laser source lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance.

The fiber laser engraving machine is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. According to its many features, people also call it fiber laser engraving machine, metal laser engraving machine, metal laser marking machine, laser metal engraving machine, laser engraving machine metal.

Machine Features:

1.Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.

2. High Precision: Re-position precision is 0.002mm

3.High Speed: Imported scanning system makes the scanning speed is up to 7000m/s

 4.Easily Operating:Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.

5.High Reliability: MTBF>100,000 hours

6. Energy Saving: The efficiency of optic-electrical converting is up to 30%

7. Low Running Cost: No wearing part. Free maintaining.


1 Laser power 20W 30W 50W 100W
2 Laser wavelength 1064nm
3 Beam quality M2<2
4 Control software Ezcad (provided)
5 Marking depth ≤0.3mm
6 Cutting depth ≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut)
7 Marking speed ≤7000mm/s
8 Minimum line width 0.01mm
9 Minimum character 0.5mm
10 Marking Size 110 * 110mm ( 75mm 200mm 300mm optional )
11 Electric power <500W
12 Working voltage 110/220V ± 10%, 50/60HZ
13 Cooling way Air cooling
14 Ambient operating temperature 15 ° C - 35 ° C
15 Graphic file format PLT, DXF, AI, BMP, JPG
16 Machine weight 39
17 Machine size 56L * 55W * 72H (cm)
18 Packing Plywood box


Machine Details

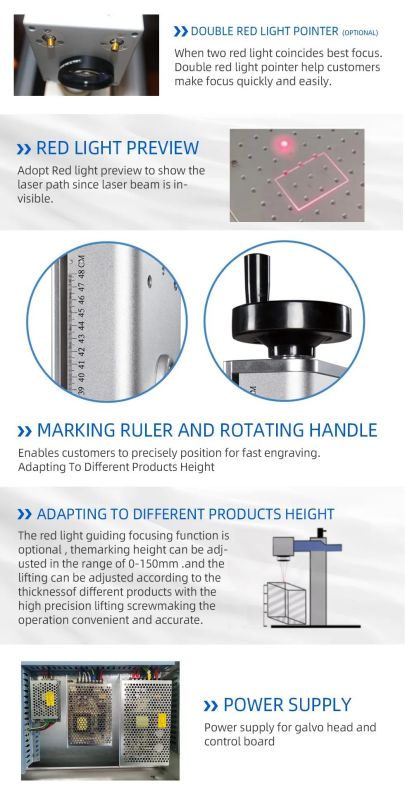

Laser Marking Machine For Gold2

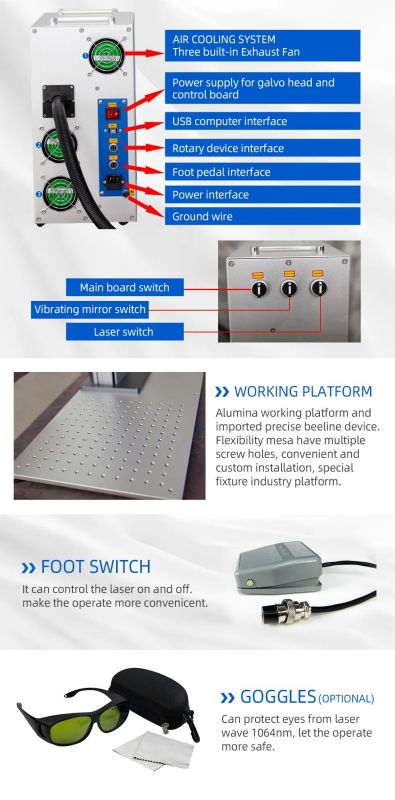

Laser Marking Machine For Gold3
50w laser marking machine4

1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet, Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition


2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material

50w laser marking machine5

Packing & Shipping

50w laser marking machine6
50w laser marking machine7

The machine would be packed in solid wooden crate for international shipping, suitable for sea, air and express transportation.
