Laser Marking Machine For Aluminum

Short Description:

Product Detail

Product Tags

Machine Features:

1) The Raycus brand laser source has a normal working life of 100,000 hours. The industry's best quality fiber optic manufacturer, microfiber beam 0.001mm; the laser's overall 3-year warranty.

2)Hand-cranked lifting system, easy to operate and easy to use. The laser focal length can be adjusted up and down according to different kinds of materials and marking materials.

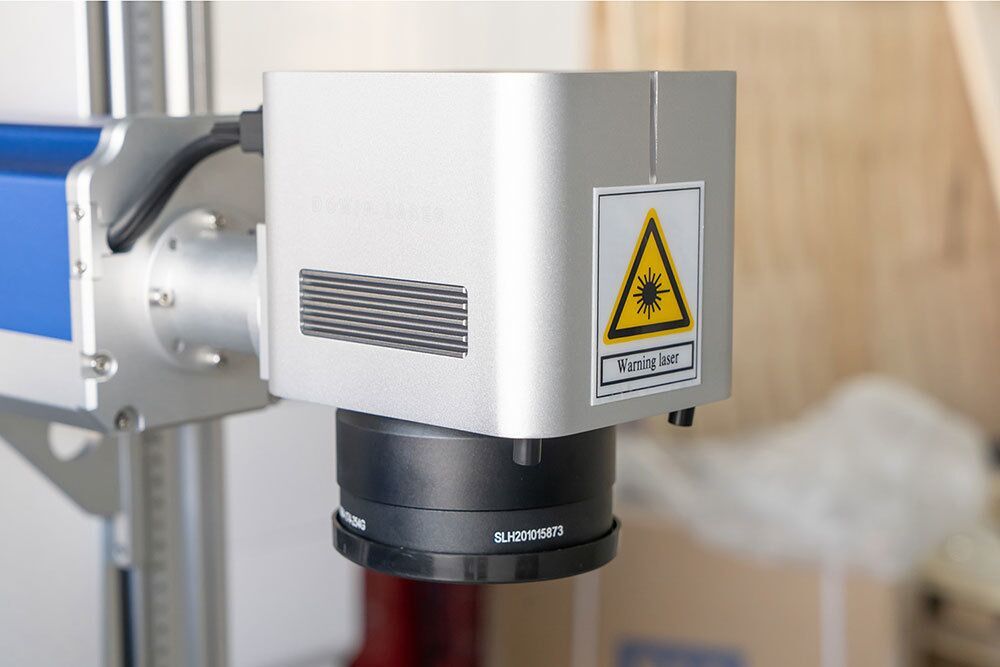

3)galvo head high speed galvanometer scan technology,digital signal,high precision and Speed.High quality laser scanning system makes the marking speed up to 7000mm/s.

 Laser Marking Machine For Alum2

4)Imported high light focusing mirror.Improve the ability of edge beam incident to the detector makes the probe on the surface of the photosensitive non-uniform illumination uniformity.

Laser Marking Machine For Alum3

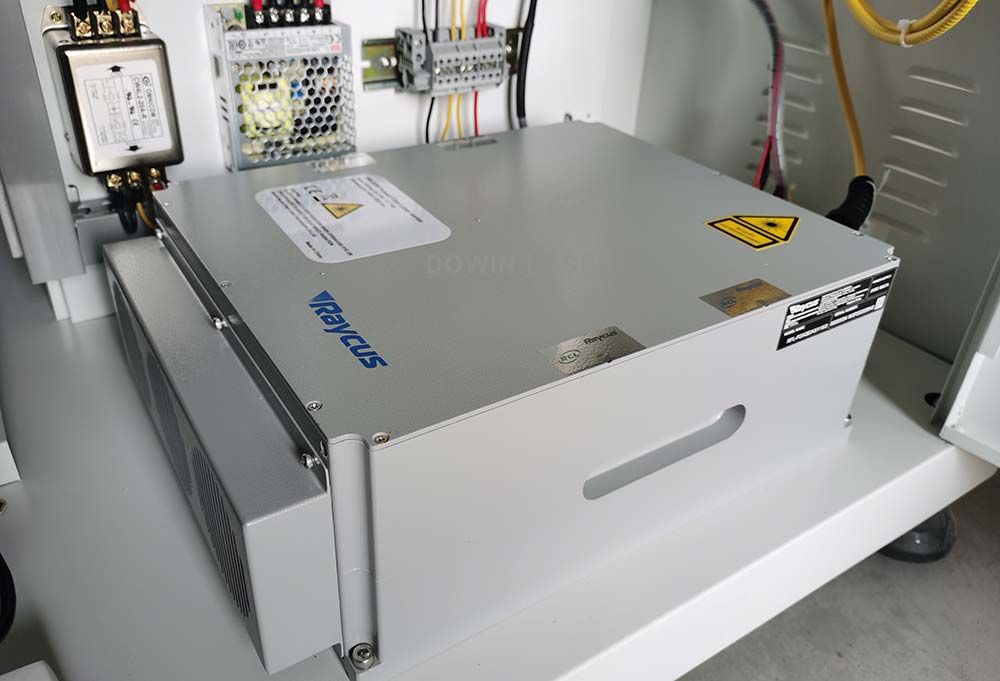

5, Famous brand Raycus laser source , with stable and long life time , max reach 10.0000hours , IPG ,JPT laser source all available , let us know your request if any special request

 Laser Marking Machine For Alum4

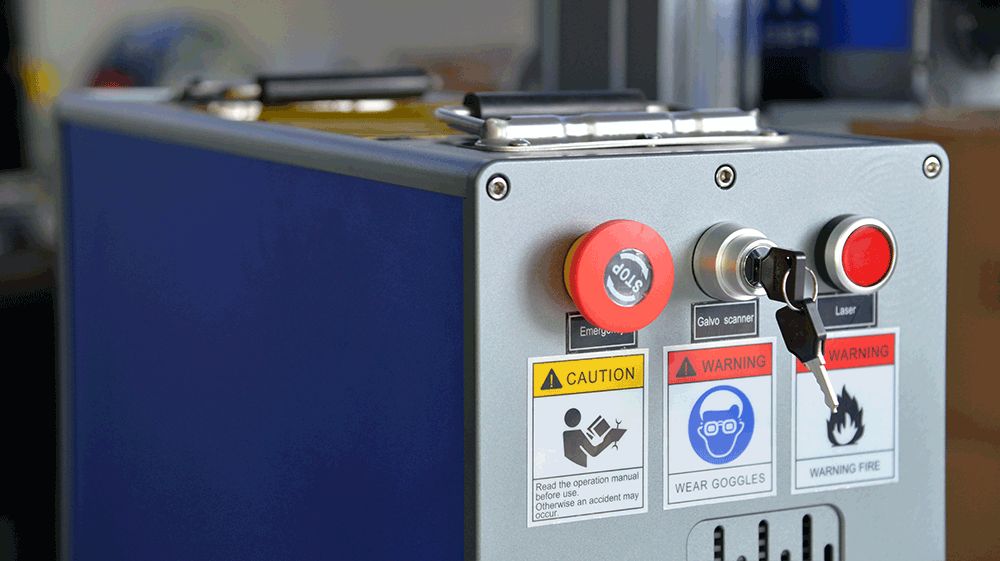

6, The overall material of the casing is oxidized by precision aluminum alloy.Appearance is beautiful and wear-resistant. The internal mechanical structure is reasonable and convenient for maintenance.

 Laser Marking Machine For Alum5

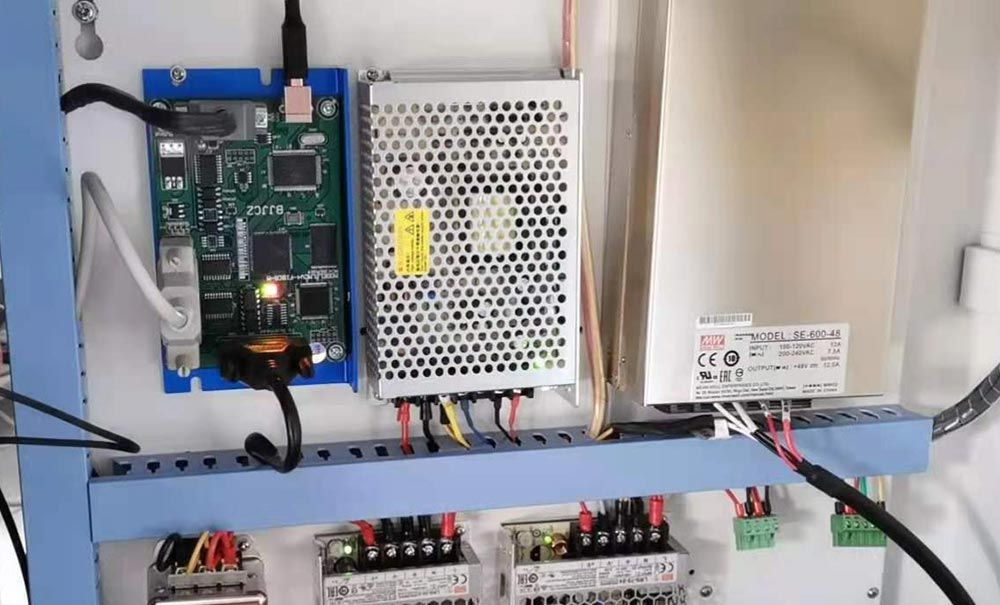

7, Professional Marking Software Genuine Jinchengzi Control Operating System.

1.Powerful editing function.

2.Friendly interface.

3.Easy to use.

4.Support Windows XP,Win 7,Win 10 system.

5.Support DXF,PLT and other file formats.

Laser Marking Machine For Alum6

8) Kindly reminder :

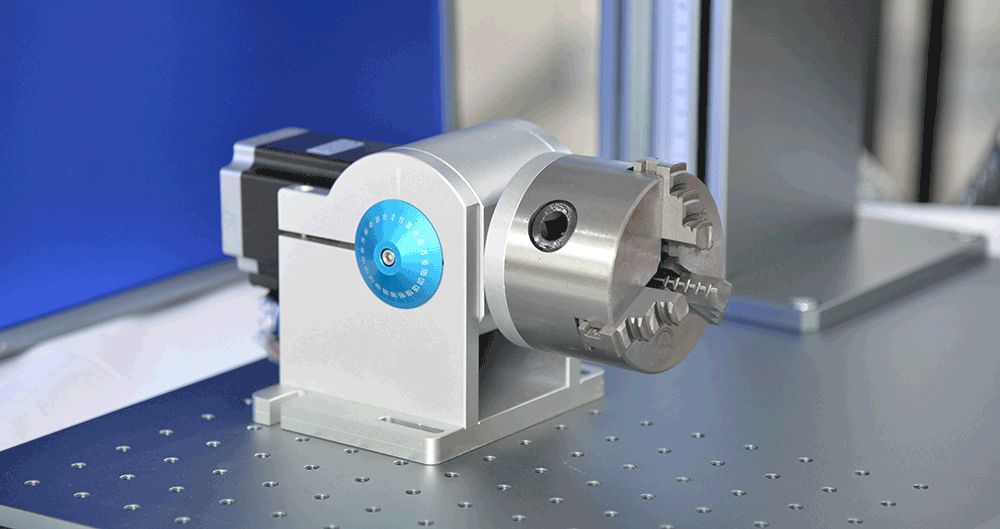

1. If you need for ring , jewelry , bracelet engraving , or tumbler marking , we have different models rotary device here , suitable for different work , so let us know in advance , we will recommend the suitable accessories device for you

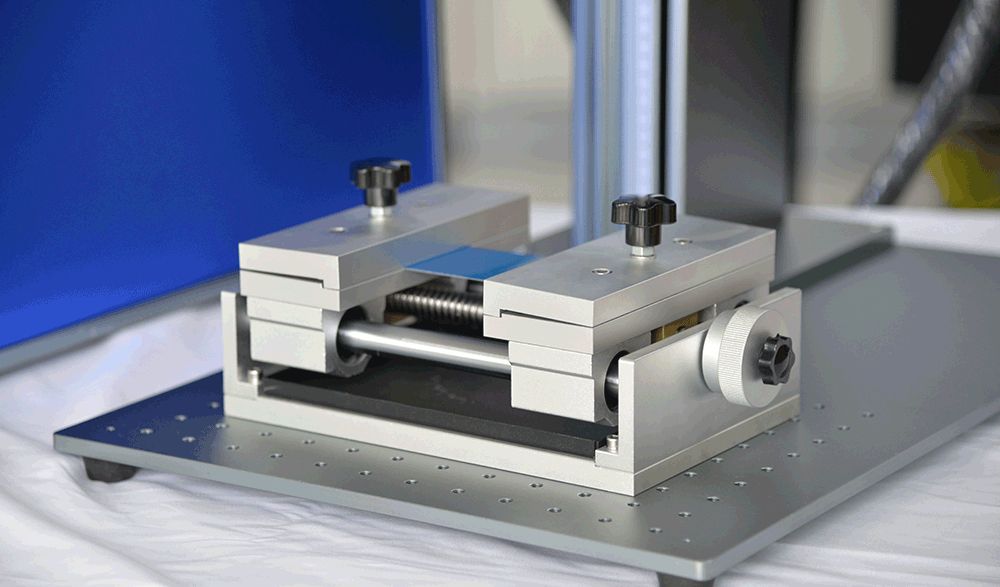

2. If you do gold , silver , stainless steel , aluminum cutting mostly , kindly suggest take the fixture together

These two are the most popular , there are also have many option accessories , like pen rotary for pen fast speed marking , X Y table for help to adjust product height when working , without moving product etc , kindly list you request , we will recommend suitable accessories based on our professional laser device knowledge

Laser Marking Machine For Alum8
Laser Marking Machine For Alum7
1 Laser power 20W 30W 50W 100W
2 Laser wavelength 1064nm
3 Beam quality M2<2
4 Control software Ezcad (provided)
5 Marking depth ≤0.3mm
6 Cutting depth ≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut)
7 Marking speed ≤7000mm/s
8 Minimum line width 0.01mm
9 Minimum character 0.15mm
10 Marking Size 110 * 110mm ( 175mm 200mm 300mm optional )
11 Electric power <500W
12 Working voltage 110/220V ± 10%, 50/60HZ
13 Cooling way Air cooling
14 Ambient operating temperature 15 ° C - 35 ° C
15 Graphic file format PLT, DXF, AI, BMP, JPG
16 Machine weight 40kg
17 Machine size 56L * 55W * 72H (cm)
18 Working Environment Clean and Dust Free

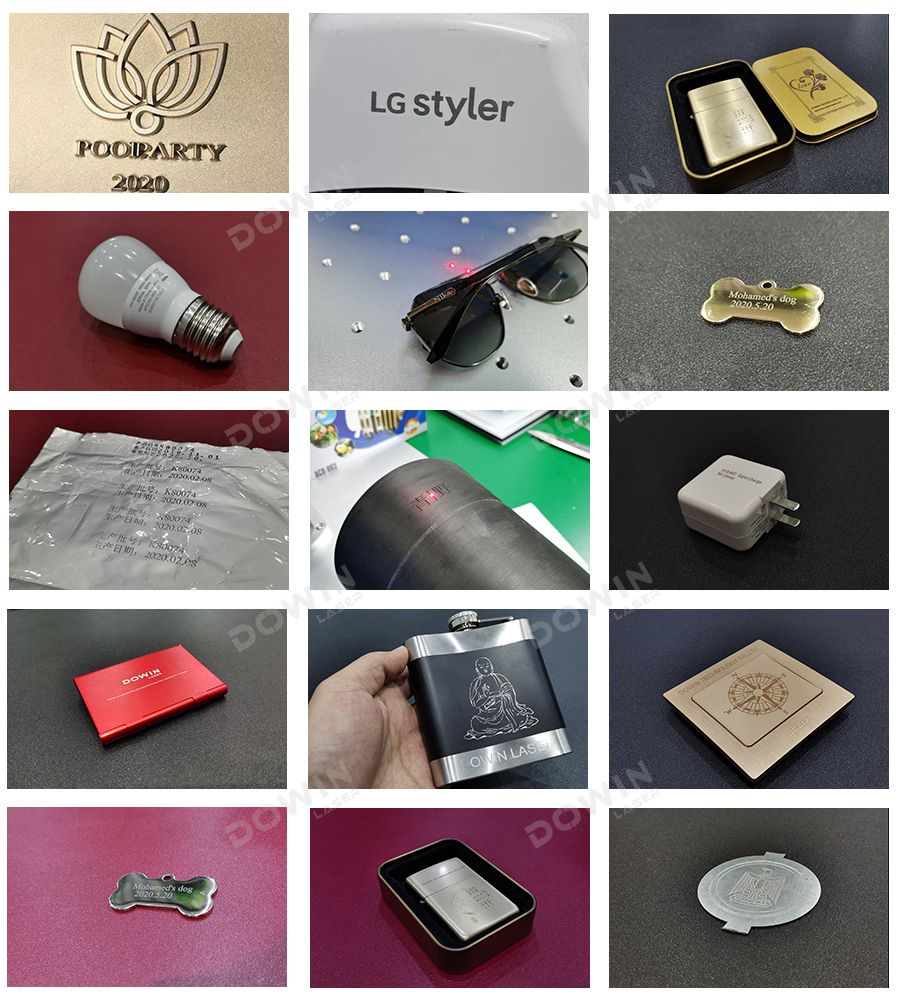

Fiber Laser Marking Machine Applicable Material:



Marking and engraving on the surface of stainless steel, alumina, aluminum alloy, aluminum, copper, iron, gold, silver, carbide and other metal materials.


Hard plastic, PVC material, etc. (different materials have different components, and the marking effect will be different accordingly)


Nameplates, Metal/Plastic Accessories, Hardware, Jewelry, Rings, Bird Rings, Animal Ear Tags, Auto Parts, Tires, Ceramics, Chips, etc.

Laser Marking Machine For Alum9
Laser Marking Machine For Alum10

Packing & Shipping

50w laser marking machine6
50w laser marking machine7

The machine would be packed in solid wooden crate for international shipping, suitable for sea, air and express transportation.
