Dual Heads CO2 Laser Cutting Machine

Short Description:

Product Detail

Product Tags

Product Description

Dual Heads CO2 Laser Cutting Machine  (2)
Item Dual Heads Co2 Laser Engrave and Cut Machine
Laser Type CO2
Power 80W/100W/130W/150W
Working Area 1600*1000mm/customizable
Control System Ruida6445G
Support System Windows XP/Win7/8/10
Control Type DSP Control
Support Format BMP,PLT,AI,CDR,DXF,etc
Maximum engraving speed 1000mm/s
Cutting Speed 500mm/s
Working Table Honeycomb table or Knife blade working table
Motorized up and down table YES
Guide Rail High Speed import linear square guide
Positioning accuracy 0.0125mm
Cooling Method Water Cooling
Water Protection System YES
Water temperature requirement 5 ° C -35 ° C
Power off and continue working YES
Cutting Thickness 0-20mm(depending on material)
Minimum character Chinese characters: 2x2mm, letters: 1x1mm
Machine Size 1870*1320*1226mm
Machine weight: 290kg
Packing weight: 360kg
Working voltage: AC220V/AC110V±10%, 50/60Hz
Warranty time: One year
Standards Accessories: Water pump, air pump, exhuast fan, power supply line, USB line, focus ruler, etc


Equipment Performance

HRC Laser - Dual Heads 1600X1000mm Acrylic/Wood Laser Cutting Engraving Machine The working area of this co2 laser cutting machine dual head is 1600*1000mm, compact nesting, conveniently storage materials. And our CO2 double head laser engraver is suitable for Leather / Wood / Paper / Glass / Acrylic materials, and it can cut or engrave in one time to improve working efficiency. This co2 dual head laser cutter machine is also widely used in cutting and engraving Fabric, Cloth, Rubber Plate, PVC Board and other kinds of nonmetal materials with complex shapes.

Main Feature

Dual Heads 1600X1000mm Acrylic/Wood Laser Cutting Engraving Etching Machine

 1. Double Laser Cutting Heads:Two cutting heads of this best laser cutting machine make cutting or engraving speed much faster, improve working efficiency.

 2. Laser Tube:Two independent laser tubes of this laser carver also allow for redundancy against failure.

 3. Professional Working Table of this best laser engraving machine:

1) Strip table for heavy and thick materials, such as wood, MDF, acylic , etc.

2) Honeycomb table for soft and thin metarials, such as fabric, etc.

3) Design for your different materials engraving and cutting requirements.

 4.  The body of the laser engraver and cutteris very hard and stable.

 5.  Front to back passing-through design (50mm height).Open for larger pieces to put into the best laser engraving machine.

 6.  Advanced LCD screen control + USB offline +128M Big Store Memory: The laser engraver and cutter adopts advanced LCD screen control, you can import any file by U disk, and set parameter in the LCD screen easily.

 7.  Owns 128M Big Memory can store files in the best laser cutting machine such as AutoCAD, CorelDraw, Photoshop etc.

 8.  Observation Window: this laser carver is made of thicken visible acrylic material, high safety protection with cover.The working will be stopped immediately when operator open this cover, so it ensure the safety of operator and won't be hurt by laser working.

 9.  Red Light Pointer: As laser light is invisible, red light pointer can realize the exact position of laser beam.

 10. Power Switches: this best laser cutting machine provided with“Over-current protection”function, make the usage more safe.

 11. Pull Rod: this best laser cutting machine uses stainless steel material with rust proof.

Machine Details

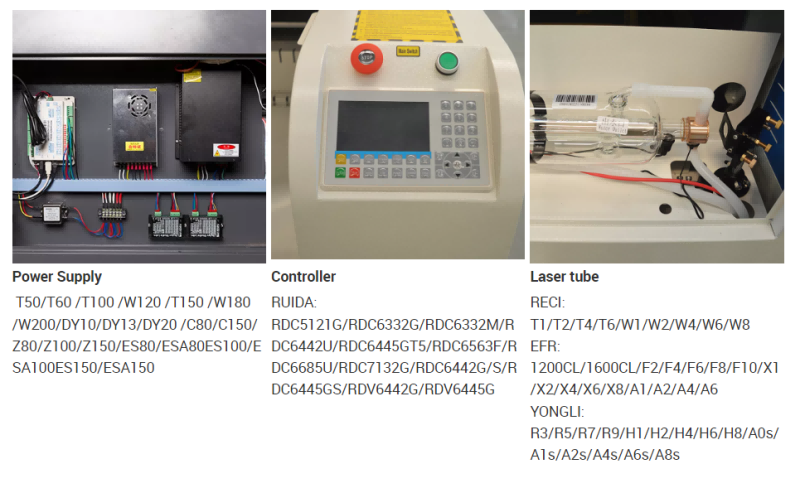

Dual Heads CO2 Laser Cutting Machine  (3)

Packing & Shipping

The co2 laser marking machine is first marked with plastic film, and the outside is packed

in wooden boxes, and the gaps are filled with foam to prevent the impact during transportation. Custom package is also available.

Dual Heads CO2 Laser Cutting Machine  (4)
Dual Heads CO2 Laser Cutting Machine  (5)
