Fiber Laser Marking Machine 20Watts 30Watts 50Watts

Short Description:

HRC Laser marking machine can mark all kind metal materials and some non-metallic materials, industrial plastic, electroplates, metal-coated materials, rubbers, ceramics, mobile button, plastic transparent button. Electronic parts, IC, tools, communication products. Bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on.

Product Detail

Product Tags


1. Low running cost.
2. Small size, one unit structure and user-friendly operation.
3. Better laser beam quality Output than the traditional ones.
4. Maintenance-free, long-term trouble-free working(>100,000 hours), low operating environment requirement.
5. Fast marking speed, 2-3 times faster than the traditional marking machine.

Product Knowledge

Compared with semiconductor laser, the advantages of fiber optic lasers lie in: fiber  laser adopts waveguide structure, accommodable to strong pump and has high gain, high efficiency, low threshold level, good output beam quality and line width, simple structure and high reliability features.

Product Detail Drawing

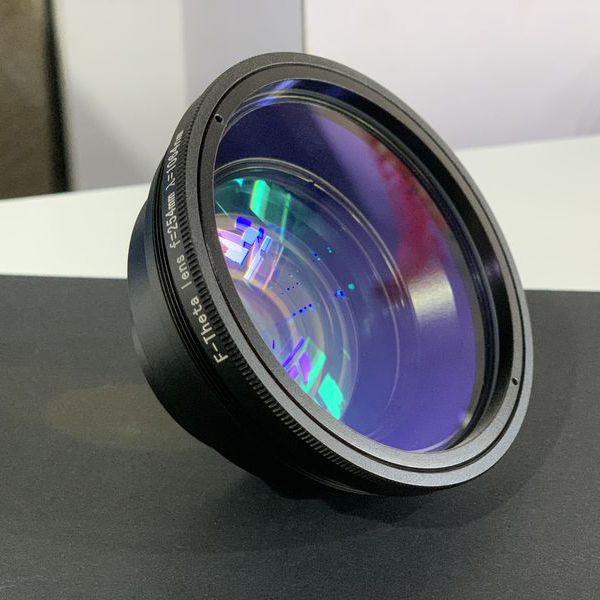

Field Lense
We use Singapore Famous "Wavelength" brand, fast speed, high transpartment rate. 110*110mm is standard marking area, Optional 150*150mm, 200*200mm, 300*300mm etc.

Field Lense

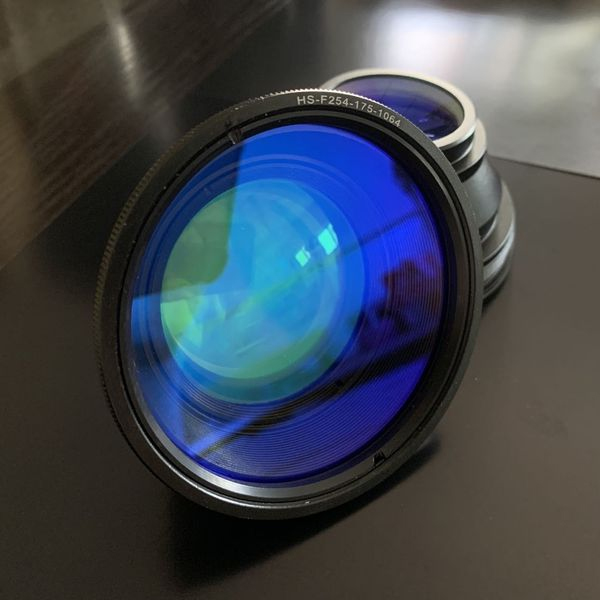

Field Lense1

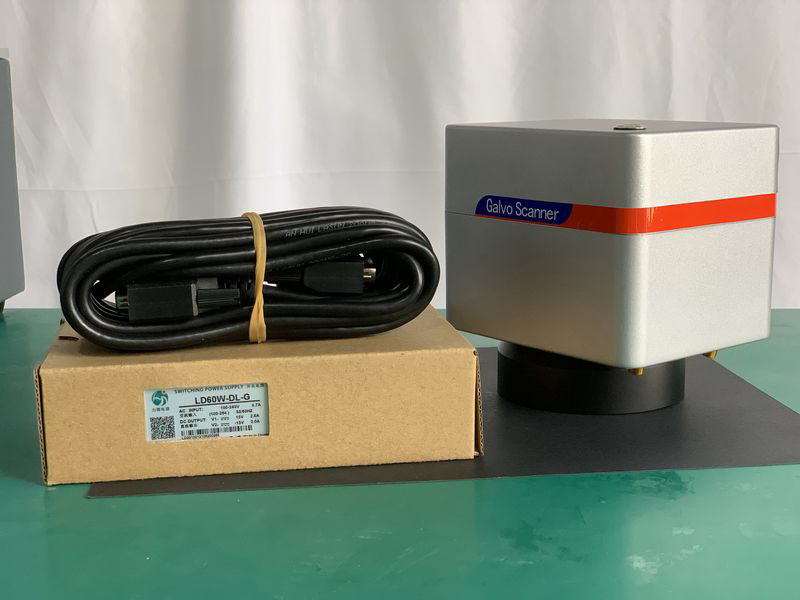

Laser Govanometer scanner

Laser Govanometer scanner
Digital Galvanometer Laser Scanning head with Fast Marking Speed. Fast response ability<0.7ms, can realize high speed marking and high precesion.

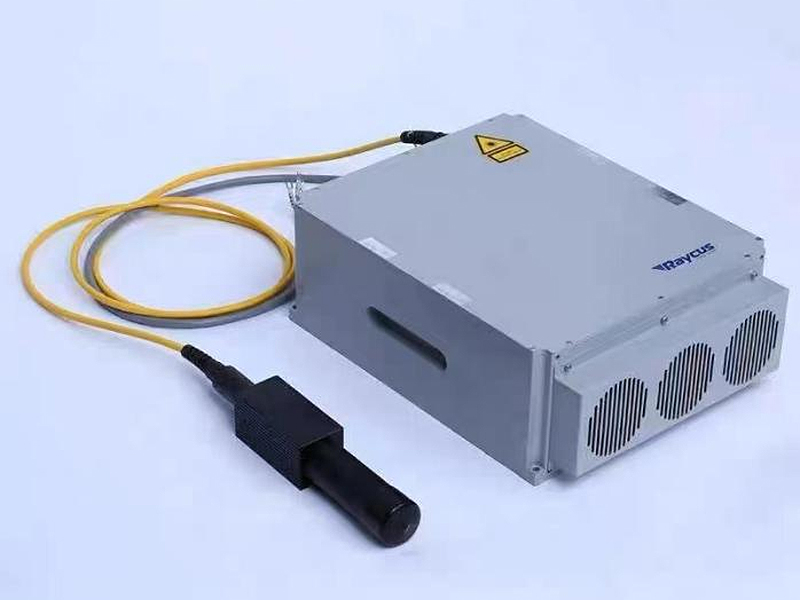

Raycus Laser Source

Raycus Laser Source
China top brand Raycus Laser Source, A wide selectivity of operating wave-lengths, ultra-low amplitude noise, high stability and ultra-long lifetime.

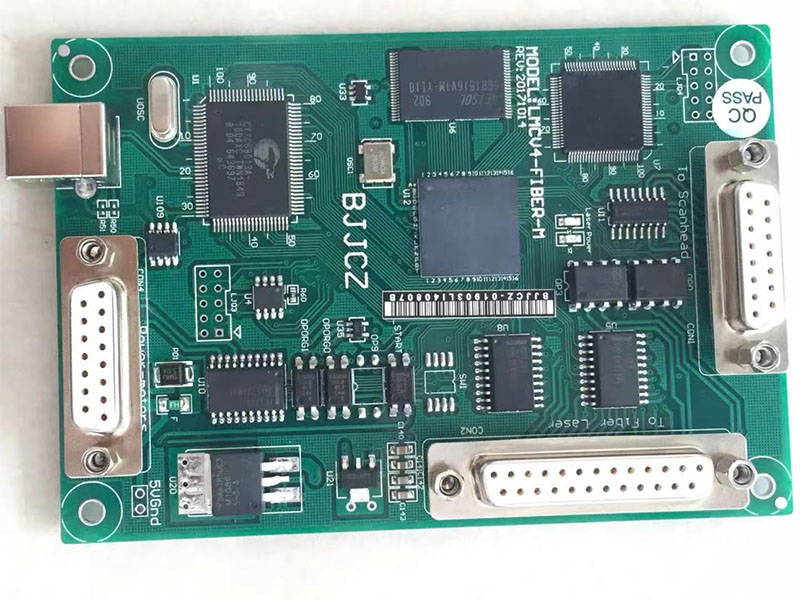

Ezcad Marking System

EZCAD Marking System
The software has a red light preview function. It can mark barcodes. Two-dimensional code, photo, etc. Support file with jpg, png, bmp or dxf, dst etc. It can be fully matched with the flight marking system to provide hundres of automated marking and feeding solutions to fully meet customer requirements.

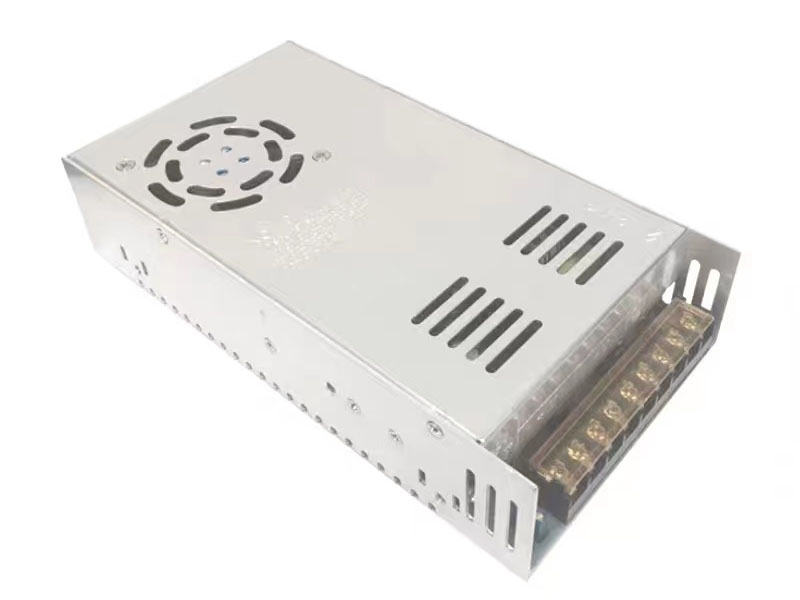

Power Source

Power Source
Provide stable direct current, improve laser work performance and service life.

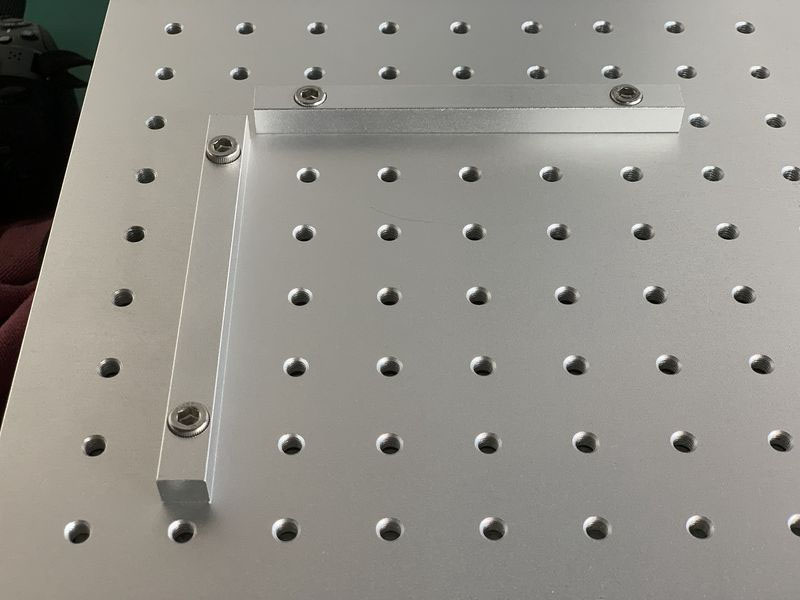

Working table

Working Table
Aluminum working table. Flat and smooth, compact structure, flexible processing direction adjustable control.

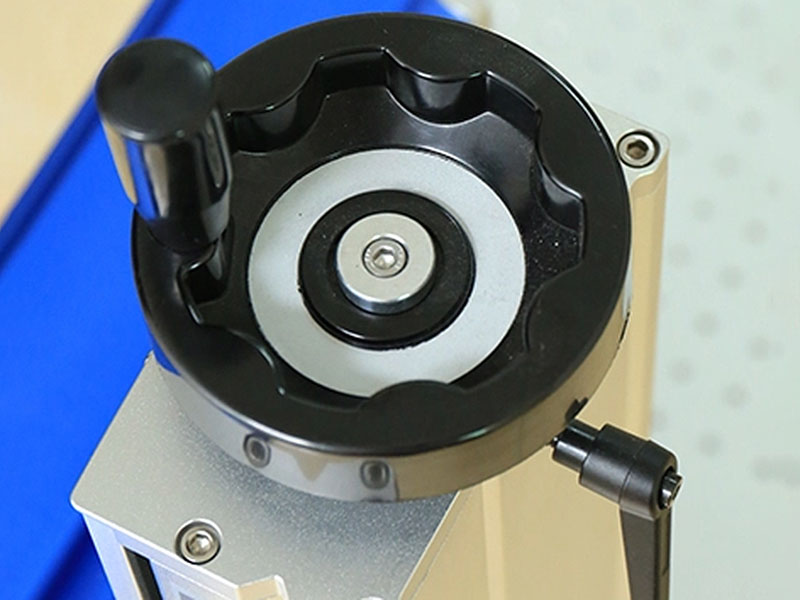

Lifting handle

Lifting Handle
High quality and stable Adjust the up and down for different height material marking.

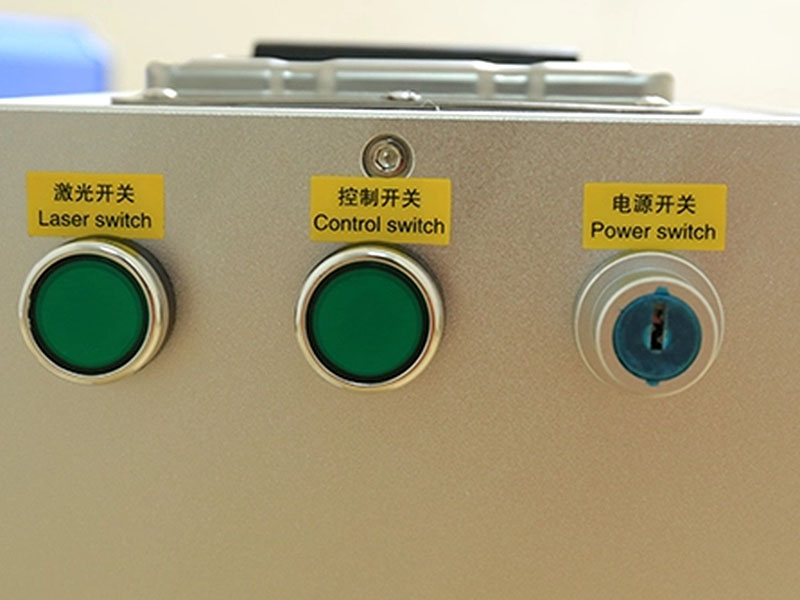

Control button

Control Button
Humanized control system, easy to operate, safe and convenient, dust proof design.

Optical Parts

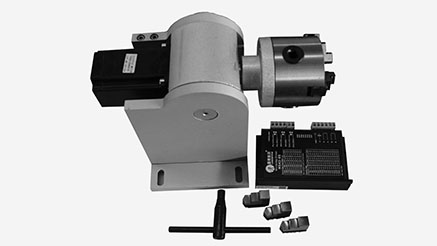

Complex rotary for irregular shape

Complex rotary for irregular shape

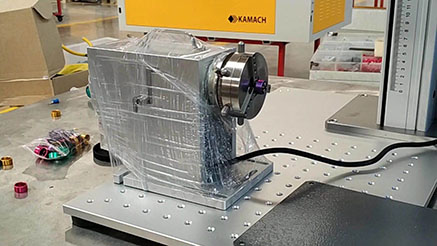

Ring rotary for ring

Ring rotary for ring
