Laser Paint Stripping Machine for Industrial

Short Description:

FTW-SL-1000/1500/2000 laser welder adopts manual workable, electric focusing, 16 group precise waveform control; Suitable for mold repair, and welding all kinds of electronic products.
In order to recommend the best machine to your product. Please kindly tell me the material, Max&Min area and thickness when you contact me.


Product Detail

Product Tags

Description

Machine Introduction
Using the latest generation fiber laser source and Independently developed, HRC Laser hand-held laser welding machine Filled in the blank of hand-held welding in laser equipment industry.

Technical Parameter

Model FTW-SL-1000 FTW-SL-1500 FTW-SL-2000
Laser Power 1000W 1500W 2000W
Laser Source Raycus/Max/IPG/ SUNLITE Raycus/Max/IPG/ SUNLITE Raycus/Max/IPG/ SUNLITE
Laser Head OSPRI OSPRI OSPRI
Fiber Wire Length 5/10 Meters 5/10 Meters 5/10 Meters
Laser Wavelength 1070nm 1070nm 1070nm
Operate Mode Continuation/Modulate Continuation/Modulate Continuation/Modulate
Water Chiller Hanli/S&A Hanli/S&A Hanli/S&A
Spot Adjusting Range 0.1-3mm 0.1-3mm 0.1-3mm
Repeating Precision ±0.01mm ±0.01mm ±0.01mm
Cabinet Size 744*941*1030mm 744*941*1030mm 750*1260*1110mm
Machine Weight About 200KG About 200KG About 220KG
Voltage 110V/220V/380V 110V/220V/380V 110V/220V/380V

Machine Tips

1. About Fiber Cable Length
Usually standard length is 10m, if you have other needs, we support shortening or lengthening.

 2. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required.
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.

3. About wire feeder
It's the machine standard configuration, we will send to you together with the whole machine.

 4. Machine warranty
usually 2 years, we have professional after sale group, 24 hour online.

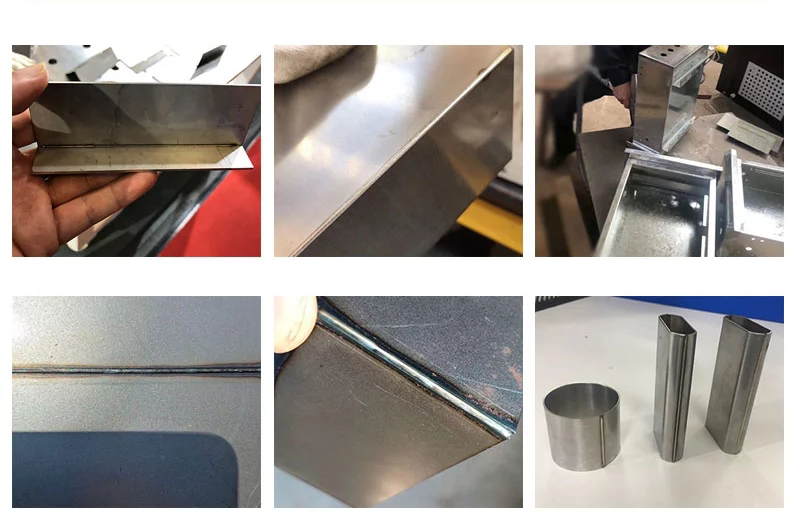

Machine Application

HRC laser welding machine Application in Stainless steel, Carbon steel, Aluminum, Copper materials, etc.
Beautiful weld, fast speed, no consumables, no welding mark, no discoloration, no need to polish later. Can be configured with a variety of Angle nozzle to meet the welding needs of different products.

Laser Paint Stripping Machine for Industrial

OSPRI (QILIN) Fiber Laser Welding Head

1. Swing welding head
The process that traditional magnetic head cannot complete, the swing welding head only needs to use 70% of the power, which can save the cost of the laser; In addition, the swing welding method is adopted, the width of the welding joint is adjustable, and the welding fault tolerance is strong, which makes up for the small shortcomings of the laser welding joint. The tolerance range and welding width of the processed parts are enlarged, and a good welding forming effect is obtained.

2. 360 degree micro welding
After the laser beam is focused, the point can be accurately positioned and used for group welding of small and micro workpieces to achieve mass production.

3. Handheld laser welding head Nozzles
When we have a fiber handheld laser welder and replace the welding nozzle with a cutting nozzle, we can call it a handheld fiber laser welding and cutting machine. Isn't it a great name! !!!
It can take the optical fiber from the fiber laser and gather it to a tiny point to produce a high intensity laser for cutting purpose. However, please note that it is not able to cut too thick material.

Laser Paint Stripping Machine for Industrial

Laser Welding Head

Smart high frequency swing welding head. Can be widely used in metal equipment, stainless steel home and other industries complex irregular welding process.

Laser Paint Stripping Machine for Industrial

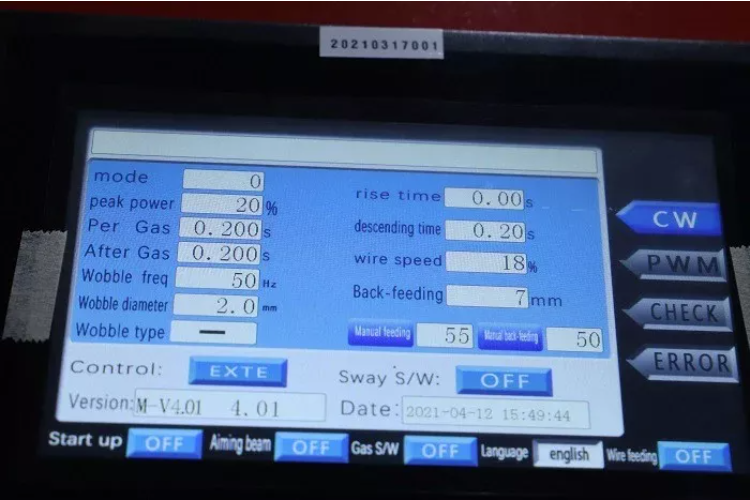

Control Panel

Control system with auto layout optimization, ensure high speed operation of whole machine.

Laser Paint Stripping Machine for Industrial

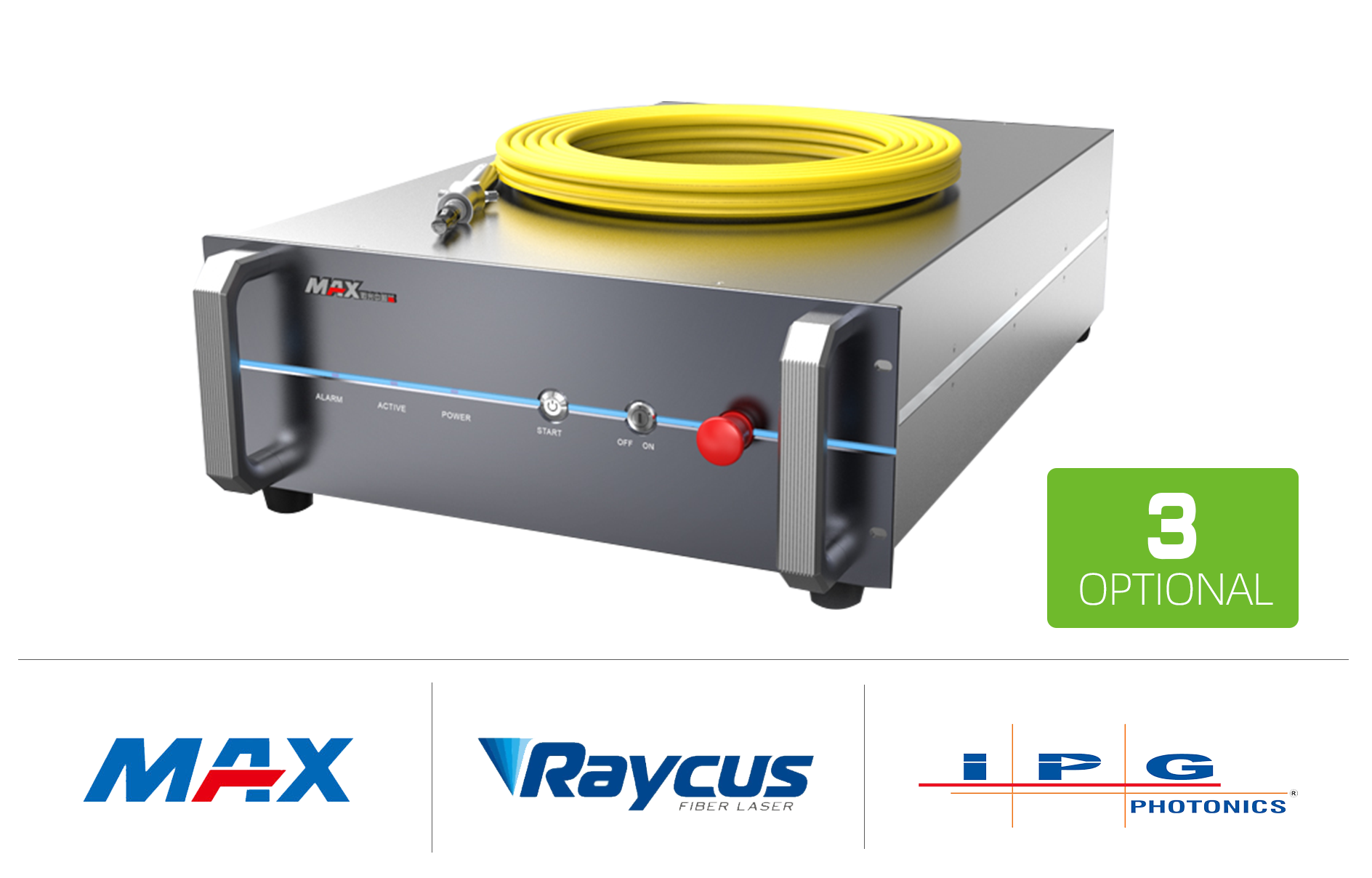

Laser Source

top brand fiber laser source Max, high power. The energy density is high, the heat input is low, the amount of thermal deformation is small.

Laser Paint Stripping Machine for Industrial

Automatic wire feed

No consumables, small size, flexible processing, low operating and maintenance costs.

Laser Paint Stripping Machine for Industrial

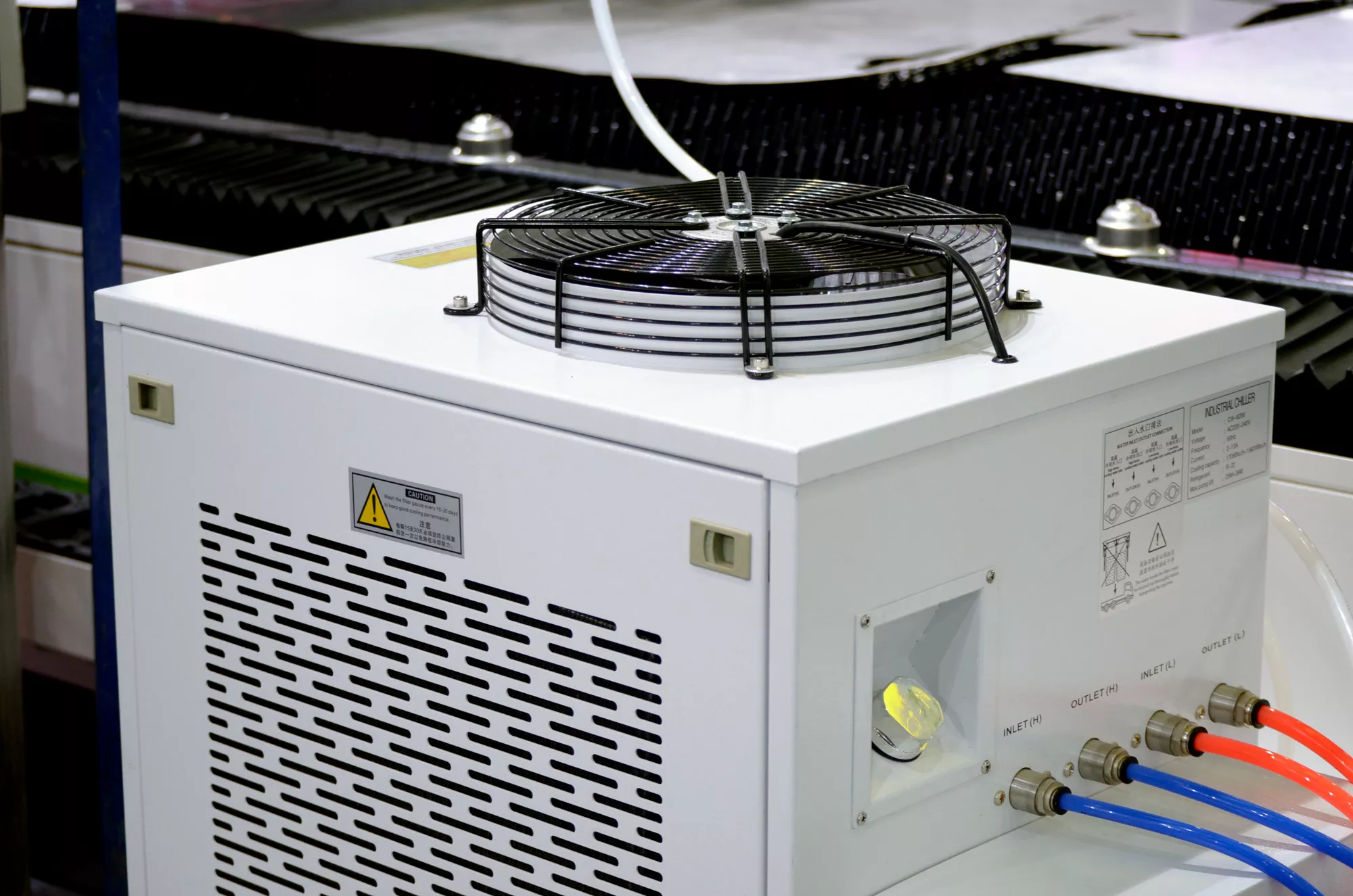

Water chiller

High cooling rate, which can weld fine weld structure and good joint performance.

FAQ

1. After Sales
We provide 1-3 year's guarantee and life-long maintenance for our products. Free repairing or replacement (except for wearing parts) is available for our products for their functional defects (except for artificial or force majeure factors) within warranty period. After warranty period, we only charge artifacts according to the actual situation.

2. Quality Control
Skilled and strict Quality Inspection Team is available during the material purchasingand production procedure.
All finished machine we delivered are 100% strictly tested by our QC departmentand engineering department.
We will provide detailed Machine pictures and Test videos to customers before delivery.

3. OEM Service
Customized and OEM orders are welcome due to our aboundant experiences.All the OEM services are free, customer only need to provide us with your logodrawing. function requirements, colors etc.
No MOQ required.

4. Privacy
None of your personally identifiable information ( such as your name, address, emailaddress, bank info, etc ) will be disclosedor shared with any third partes.
Contact All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.

5. Payment terms
Alibaba Trade Assurance ( New, safe and popular payment terms).
30% T/T paid in advance as deposit, the balance paid before shipment.
lrevocable LC at sight.
Other payment terms: Paypal, Western Union and so on.

6. Documents Support
All Documents for clearance customs support: Contract, Packing list, CommercialInvoice, Export declaration and so on.
